EBRA53P2H-25.000M TR - Ecliptek

Description: Automotive Grade Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 1.6mm x 2.0mm Ceramic Surface Mount (SMd)

Download EBRA53P2H-25.000M TR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EBRA53P2H-25.000M TR model

Email notifications will be applied after download.

Send part feedback

Symbol

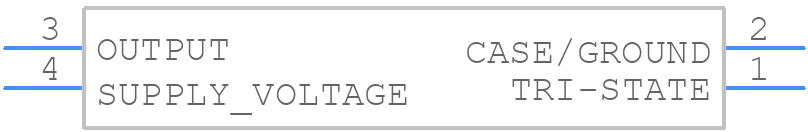

EBRA53P2H-25.000M TR - Ecliptek - PCB symbol

PCB Footprints

EBRA53P2H-25.000M TR - Ecliptek PCB footprint - Other - Other - EBRA53P2H-25.000M TR-2

3D Models

EBRA53P2H-25.000M TR - Ecliptek - 3D model - Other - EBRA53P2H-25.000M TR-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for EBRA53P2H-25.000M TR
Part Number EBRA53P2H-25.000M TR
Manufacturer Ecliptek
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - EBRA53P2H-25.000M TR-2
Released Date Mar 28, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EBRA53P2H-25.000M TR Details

Manufacturer Part Number:
EBRA53P2H-25.000M TR
Manufacturer:
Ecliptek Corporation

Trust Checks

Expert Contribution

System Verified

Community Approved

EBRA53P2H-25.000M TR Overview

Use the download button to access the EBRA53P2H-25.000M TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EBRA5, or try a keyword search, such as XO
