Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a ground plane, minimizing trace lengths, and avoiding vias under the oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated ground plane to reduce noise and EMI.
To ensure reliable startup, Abracon recommends following the recommended power-up sequence, using a stable power supply, and ensuring the oscillator is properly terminated. Additionally, it's recommended to add a 10-100nF decoupling capacitor between the VCC and GND pins to filter out noise.
The EBRA53T2H-25.000M has an operating temperature range of -40°C to +85°C. However, it's recommended to derate the frequency tolerance and stability over temperature according to the datasheet specifications.
The EBRA53T2H-25.000M is designed to meet the requirements of MIL-STD-202G, Method 204D, which includes vibration testing. However, it's recommended to consult with Abracon's application engineers to ensure the oscillator meets the specific vibration requirements of your application.
Abracon recommends following the JEDEC J-STD-020D.01 standard for soldering profiles, with a peak temperature of 260°C and a dwell time of 30-60 seconds. It's also recommended to use a nitrogen atmosphere to reduce oxidation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EBRA53T2H-25.000M Overview

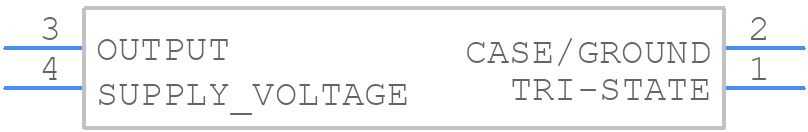

Use the download button to access the EBRA53T2H-25.000M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EBRA5,
or try a keyword search, such as XO
