EBTM-4-10-2.0-S-RA-1-R footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

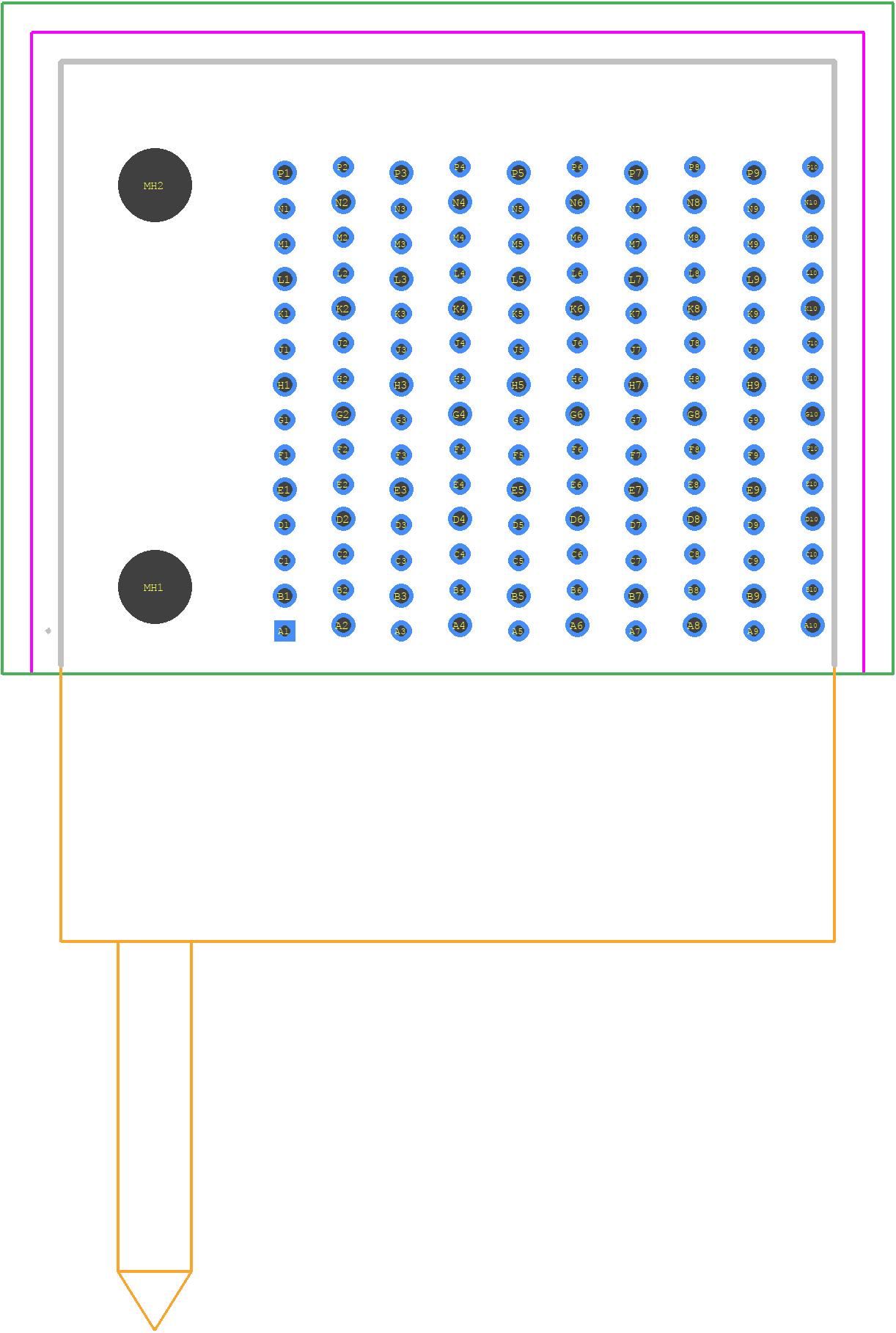

PCB Footprints

EBTM-4-10-2.0-S-RA-1-R - SAMTEC PCB footprint - Other - Other - EBTM-4-10-2.0-S-RA-1-R-1

click to zoom

3D Models

EBTM-4-10-2.0-S-RA-1-R - SAMTEC - 3D model - Other - EBTM-4-10-2.0-S-RA-1-R-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EBTM-4-10-2.0-S-RA-1-R
Part Number EBTM-4-10-2.0-S-RA-1-R
Manufacturer SAMTEC
Pin Count 140
Part Category Connector
Package Category Other
Footprint Name Other - EBTM-4-10-2.0-S-RA-1-R-1
Released Date Sep 17, 2025
Last Modified Date Sep 17, 2025 3:11 AM UTC
Pinout / Pin List Click Here (Member Only)

EBTM-4-10-2.0-S-RA-1-R Details

Manufacturer Part Number:
EBTM-4-10-2.0-S-RA-1-R
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
27 Weeks
Manufacturer:
Samtec Inc
Connector Type:
BOARD CONNECTOR

EBTM-4-10-2.0-S-RA-1-R Frequently Asked Questions (FAQs)

The operating temperature range of the EBTM-4-10-2.0-S-RA-1-R connector is -55°C to 125°C.
Yes, the EBTM-4-10-2.0-S-RA-1-R connector is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The mating cycle life of the EBTM-4-10-2.0-S-RA-1-R connector is 500 cycles minimum.
Yes, the EBTM-4-10-2.0-S-RA-1-R connector is designed to withstand high-vibration applications, making it suitable for use in harsh environments.
The recommended torque for the EBTM-4-10-2.0-S-RA-1-R connector is 0.5 N·m to 1.5 N·m (4.4 in·lb to 13.3 in·lb).

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

EBTM-4-10-2.0-S-RA-1-R Overview

Use the download button to access the EBTM-4-10-2.0-S-RA-1-R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EBTM-, or try a keyword search, such as Headers and Edge Type Connectors
