EBTM-6-12-2.0-S-VT-1 - SAMTEC

Description: ExaMAX® 2.00 mm High-Speed Backplane Vertical Header 144 Connector Header, Male Blades Through Hole Black ExaMax® HEIGHT-11.65

Download EBTM-6-12-2.0-S-VT-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EBTM-6-12-2.0-S-VT-1 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

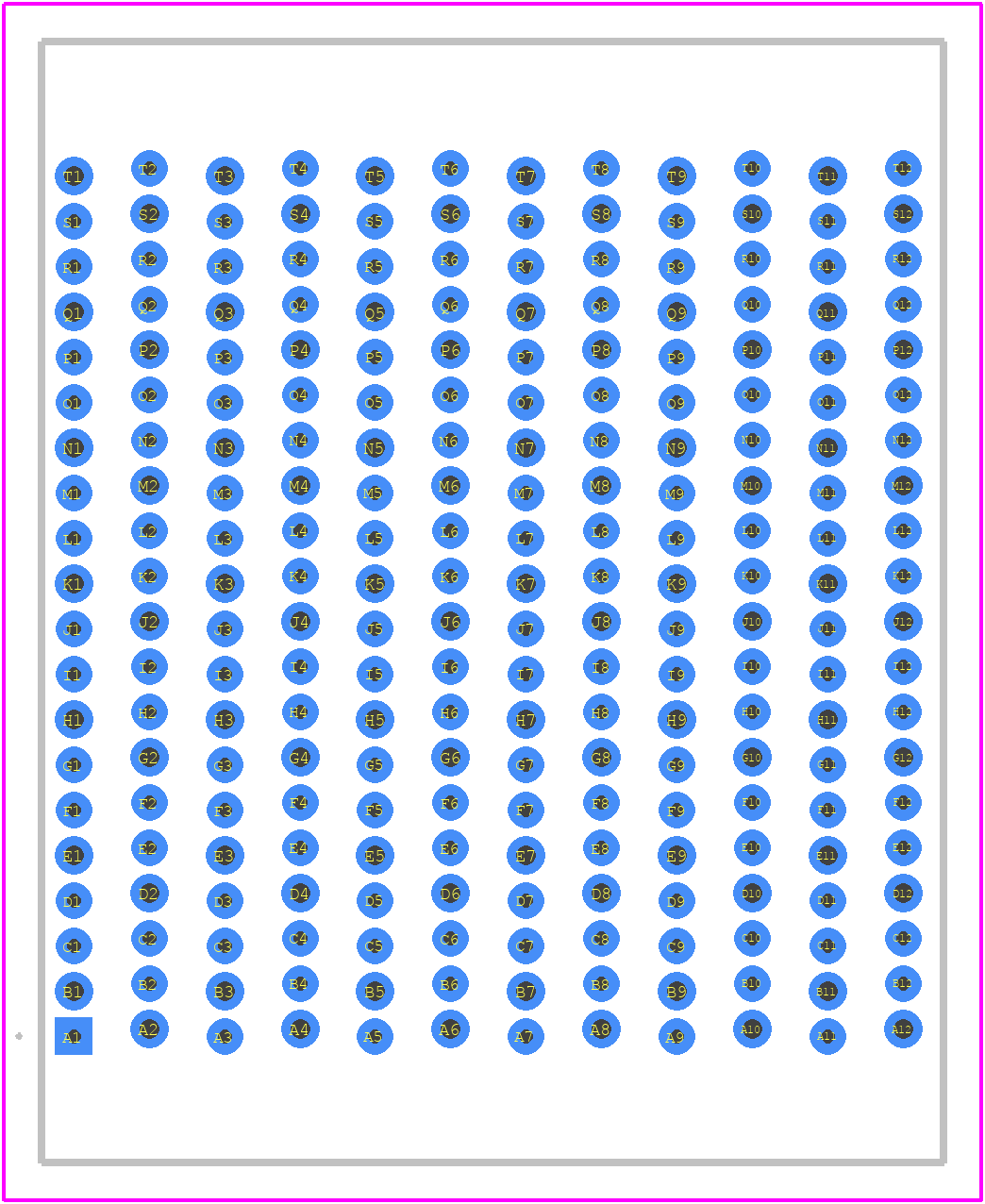

EBTM-6-12-2.0-S-VT-1 - SAMTEC PCB footprint - Other - Other - EBTM-6-12-2.0-S-VT-1-1
click to zoom
3D Models
EBTM-6-12-2.0-S-VT-1 - SAMTEC - 3D model - Other - EBTM-6-12-2.0-S-VT-1-1
click to zoom

EBTM-6-12-2.0-S-VT-1 Details

  • Manufacturer Part Number:

    EBTM-6-12-2.0-S-VT-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Body Breadth:

    0.941 inch

  • Body Depth:

    0.459 inch

  • Body Length:

    1.169 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.079 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Pitch:

    2.0066 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    144

EBTM-6-12-2.0-S-VT-1 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 Nm (4-12 in-lbs) for the screw-down mechanism, but it's always best to consult the specific application and Samtec's technical support for precise guidance.
  • Yes, the EBTM-6-12-2.0-S-VT-1 is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and screw-down mechanisms to maintain the connector's integrity.
  • The EBTM-6-12-2.0-S-VT-1 has an operating temperature range of -55°C to 125°C (-131°F to 257°F), making it suitable for a wide range of applications.
  • Yes, the EBTM-6-12-2.0-S-VT-1 is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The EBTM-6-12-2.0-S-VT-1 has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
