EC1100HSETTS-4.000M - Ecliptek

Description: Oscillator XO 4MHz ±100ppm 50pF HCMOS/TTL 60% 5V 4-Pin Metal DIP Thru-Hole Bulk

Download EC1100HSETTS-4.000M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

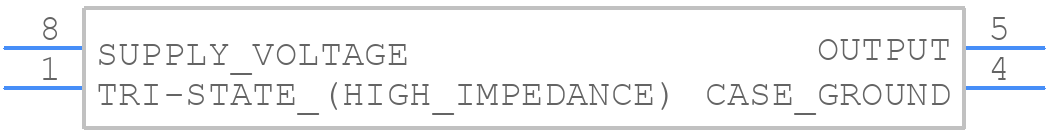

EC1100HSETTS-4.000M - Ecliptek - PCB symbol
click to zoom
PCB Footprints
EC1100HSETTS-4.000M - Ecliptek PCB footprint - Other - Other - EC1100HSETTS-4.000M-5
click to zoom
3D Models
EC1100HSETTS-4.000M - Ecliptek - 3D model - Other - EC1100HSETTS-4.000M-5
click to zoom

EC1100HSETTS-4.000M Details

  • Manufacturer Part Number:

    EC1100HSETTS-4.000M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, METAL, DIP-8/4

  • Manufacturer:

    Ecliptek Corporation

  • YTEOL:

    0

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION; BULK

  • Fall Time-Max:

    6 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    100%

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    4 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    HCMOS/TTL

  • Output Load:

    10 TTL, 50 pF

  • Package Body Material:

    Metal

  • Physical Dimension:

    13.2mm x 13.2mm x 5.6mm

  • Rise Time-Max:

    6 ns

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Symmetry-Max:

    60/40 %

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

EC1100HSETTS-4.000M Frequently Asked Questions (FAQs)

  • The recommended termination impedance is 15pF to 30pF to ensure optimal performance and minimize signal reflections.
  • Yes, the EC1100HSETTS-4.000M is designed to operate in a wide temperature range of -40°C to +85°C, making it suitable for use in harsh environments.
  • The typical power consumption of the EC1100HSETTS-4.000M is around 10mA to 20mA, depending on the operating frequency and voltage supply.
  • Yes, the EC1100HSETTS-4.000M is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
  • The typical jitter performance of the EC1100HSETTS-4.000M is around 50ps to 100ps, depending on the operating frequency and voltage supply.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EC1100HSETTS-4.000M Overview

Use the download button to access the EC1100HSETTS-4.000M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC110, or try a keyword search, such as XO
