EC20EATEA-256-STD - Quectel

Description: Quectel LTE Module EC20EATEA-256-STD

Download EC20EATEA-256-STD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EC20EATEA-256-STD - Quectel - PCB symbol
click to zoom
PCB Footprints

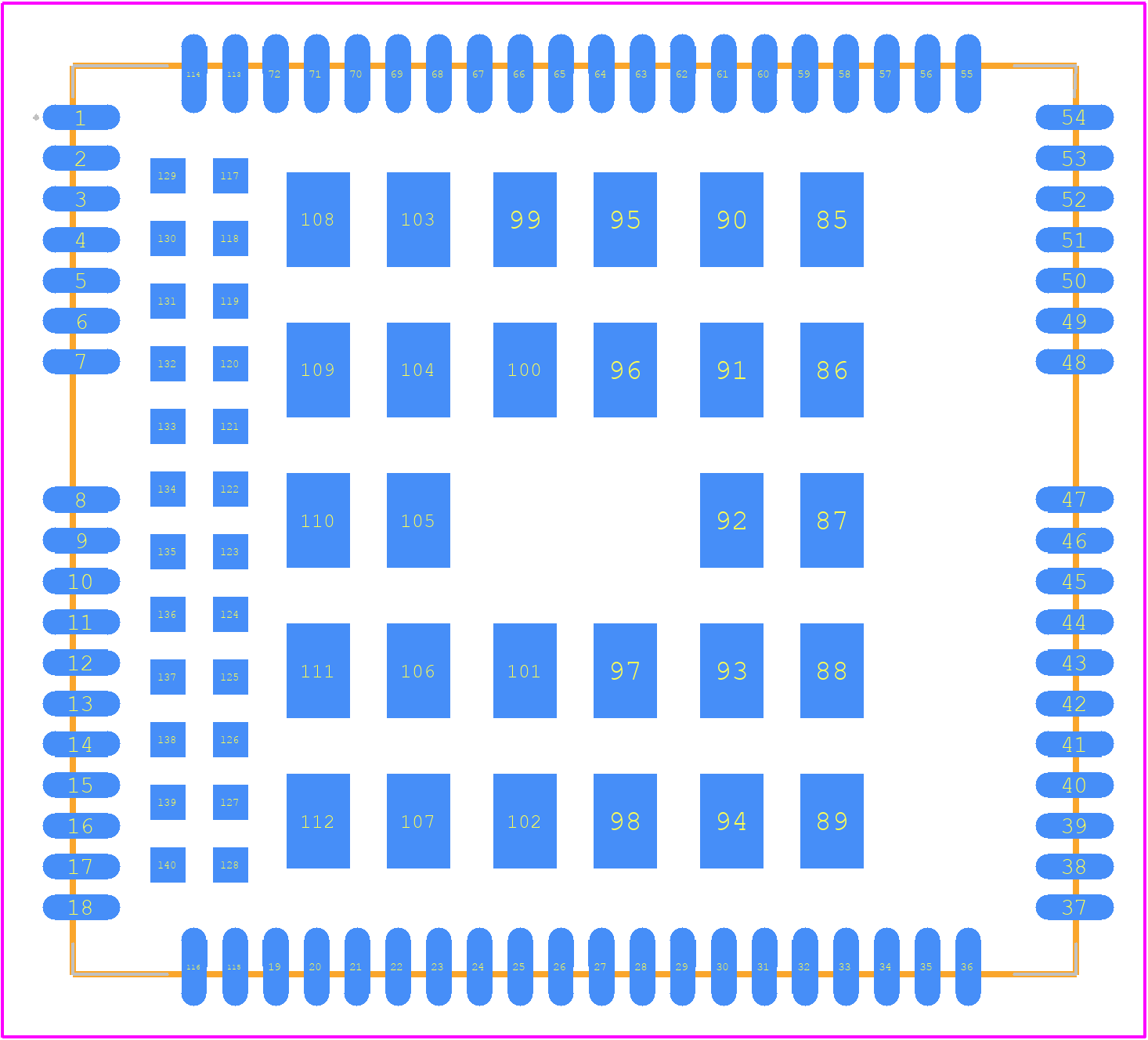

EC20EATEA-256-STD - Quectel PCB footprint - Other - Other - EC20EATEA-256-STD
click to zoom
3D Models
EC20EATEA-256-STD - Quectel - 3D model - Other - EC20EATEA-256-STD
click to zoom

EC20EATEA-256-STD Details

  • Manufacturer Part Number:

    EC20EATEA-256-STD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    Multi-mode LTE Module

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Quectel Wireless Solutions Co Ltd

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    R-XXMA-N140

  • Length:

    32 mm

  • Number of Functions:

    1

  • Number of Terminals:

    140

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    29 mm

EC20EATEA-256-STD Frequently Asked Questions (FAQs)

  • The maximum power consumption of the EC20EATEA-256-STD module is around 2.5W, but it can vary depending on the operating mode and frequency band.
  • The EC20EATEA-256-STD module supports multiple frequency bands, and the configuration can be done through AT commands. You can use the AT+QCFG command to set the band and AT+QNWINFO command to query the current band configuration.
  • The maximum data transfer rate of the EC20EATEA-256-STD module is up to 100Mbps for downlink and up to 50Mbps for uplink, depending on the network conditions and frequency band.
  • The EC20EATEA-256-STD module supports various security features such as SSL/TLS, DTLS, and IPSec. You can use the AT+QSSLCFG command to configure the SSL/TLS settings and AT+QIPSECCFG command to configure the IPSec settings.
  • The operating temperature range of the EC20EATEA-256-STD module is -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
