EC2720TTS-125.000M - Ecliptek

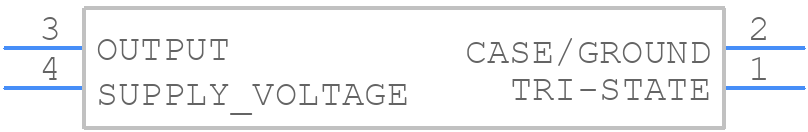

EC2720TTS-125.000M Details

• Manufacturer Part Number:

  EC2720TTS-125.000M

• Brand Name:

  Ecliptek

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  SMD 5.0mm x 7.0mm

• Package Description:

  ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

• Pin Count:

  4

• Manufacturer Package Code:

  SMD 5.0mm x 7.0mm

• Manufacturer:

  Ecliptek Corporation

• Additional Feature:

  TRI-STATE; ENABLE/DISABLE FUNCTION

• Fall Time-Max:

  2 ns

• Frequency Adjustment-Mechanical:

  NO

• Frequency Stability:

  20%

• JESD-609 Code:

  e4

• Mounting Feature:

  SURFACE MOUNT

• Number of Terminals:

  4

• Operating Frequency-Max:

  200 MHz

• Operating Frequency-Min:

  1.544 MHz

• Operating Frequency-Nom:

  125 MHz

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

• Oscillator Type:

  LVHCMOS

• Output Load:

  15 pF

• Output Low Current-Max:

  4 mA

• Package Body Material:

  CERAMIC

• Package Equivalence Code:

  DILCC4,.2,200

• Physical Dimension:

  7.0mm x 5.0mm x 1.6mm

• Qualification Status:

  Not Qualified

• Rise Time-Max:

  2 ns

• Supply Current-Max:

  45 mA

• Supply Voltage-Max:

  2.625 V

• Supply Voltage-Min:

  2.375 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Symmetry-Max:

  55/45 %

• Terminal Finish:

  Nickel/Gold (Ni/Au)
