INPUT UNDER VOLTAGE; OUTPUT OVER CURRENT; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.017675 Vrms
Screening Level:
IEC 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
10 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.02 s
Width:
25.4 mm
EC2SB-24S05 Frequently Asked Questions (FAQs)
The recommended PCB layout for optimal thermal performance involves placing the EC2SB-24S05 near a thermal pad or a heat sink, and ensuring good airflow around the component. Additionally, using thermal vias and a solid ground plane can help to dissipate heat efficiently.
To ensure reliable operation in high-vibration environments, it's recommended to use a secure mounting method, such as screwing or adhesive, and to follow the manufacturer's guidelines for PCB design and assembly. Additionally, using a vibration-dampening material, such as a silicone adhesive, can help to reduce the impact of vibrations on the component.
The maximum allowable ripple voltage on the input of the EC2SB-24S05 is typically 10% of the nominal input voltage. Exceeding this limit can affect the performance and reliability of the component.
Yes, the EC2SB-24S05 can be used in a redundant or parallel configuration to achieve higher power ratings or to improve system reliability. However, it's essential to follow the manufacturer's guidelines and to ensure that the components are properly synchronized and configured to avoid any potential issues.
The typical efficiency of the EC2SB-24S05 is around 85-90% depending on the input voltage, output voltage, and load conditions. The actual efficiency may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC2SB-24S05 Overview

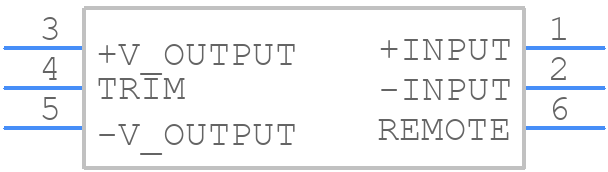

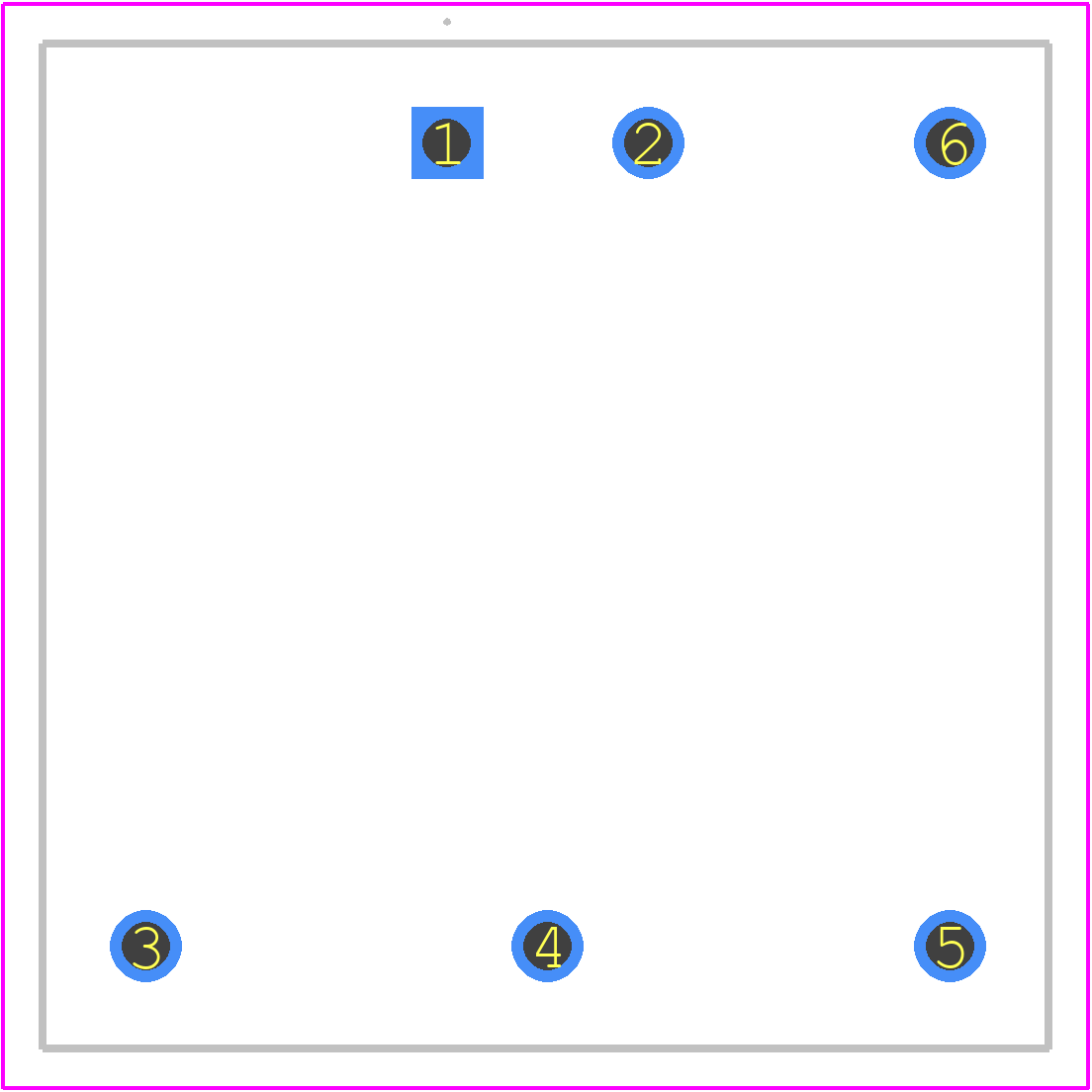

Use the download button to access the EC2SB-24S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC2SB,
or try a keyword search, such as Power Supply Modules
