The recommended PCB layout involves placing the EC3AB21 near the power input, using a solid ground plane, and keeping the input and output traces separate. For thermal management, a heat sink with a thermal resistance of 10°C/W or lower is recommended, along with a thermal interface material with a thermal conductivity of 1 W/m-K or higher.
To ensure EMC, use a shielded enclosure, keep the EC3AB21 away from sensitive components, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, follow the recommended layout and grounding guidelines to minimize radiated emissions.
The EC3AB21 can tolerate a maximum voltage deviation of ±10% of the nominal input voltage without affecting its performance or reliability. However, it's recommended to maintain a voltage deviation of ±5% or less for optimal performance.
The EC3AB21 is rated for operation up to 85°C ambient temperature. However, derating is required for temperatures above 70°C. Consult the datasheet for derating curves and ensure proper thermal management to prevent overheating.
Common issues with the EC3AB21 can be troubleshooted by checking the input voltage, output load, and thermal management. Verify that the input voltage is within the recommended range, the output load is within the specified current rating, and the thermal management is adequate. Consult the datasheet and application notes for more detailed troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC3AB21 Overview

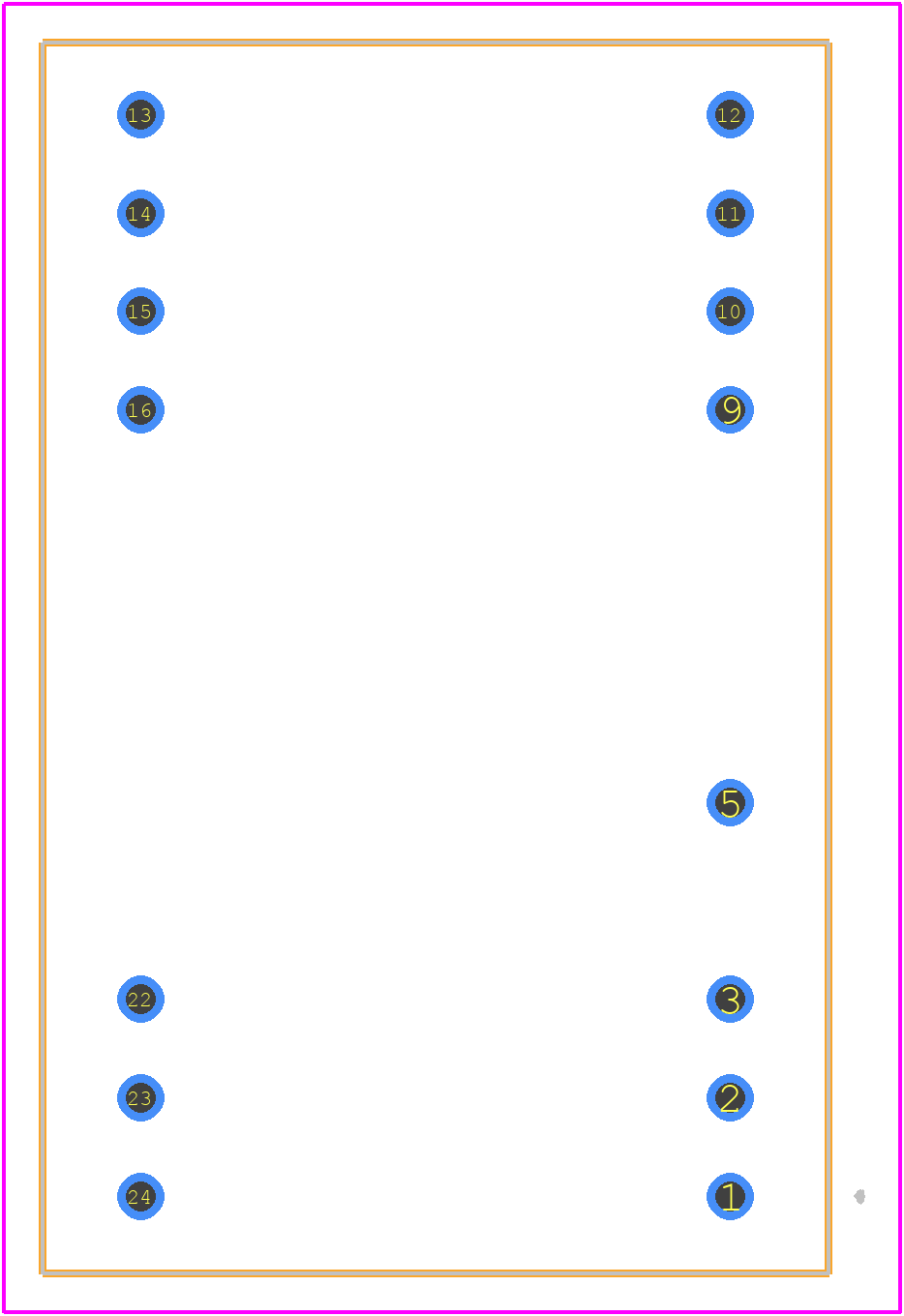

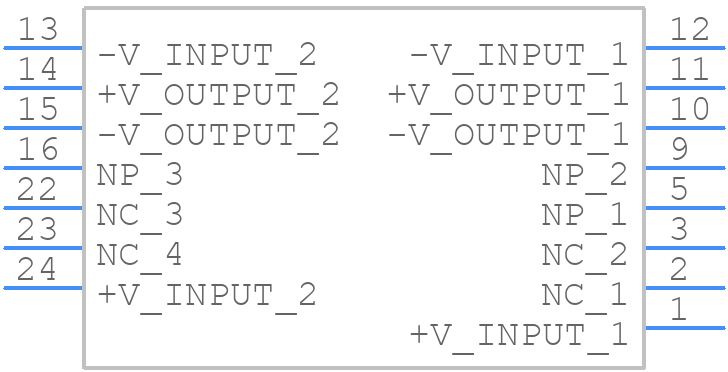

Use the download button to access the EC3AB21 schematic symbol, PCB footprint, and 3D model.
