EC3SAW-24S05HP - Cincon

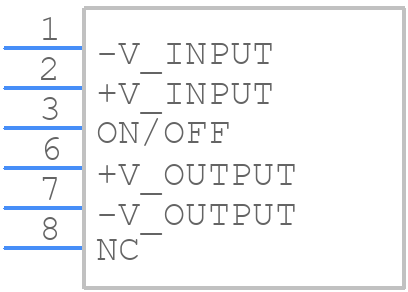

EC3SAW-24S05HP Details

• Manufacturer Part Number:

  EC3SAW-24S05HP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SIP-8/6

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE

• Efficiency (Main Output):

  81%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PSIP-T6

• Length:

  21.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.6 A

• Output Voltage-Max:

  5.075 V

• Output Voltage-Min:

  4.925 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SIP

• Package Equivalence Code:

  SIP6/8,.02

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  INPUT UNDER VOLTAGE, OVER CURRENT, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Screening Level:

  IEC/EN/UL 62368-1

• Seated Height-Max:

  11.6 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.5 mm

• Terminal Position:

  SINGLE

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.001 s

• Width:

  9.2 mm
