The recommended PCB layout for optimal thermal performance involves placing the EC3SAW-24S33HP near a thermal pad or a heat sink, ensuring good airflow, and using thermal vias to dissipate heat. A 4-layer PCB with a dedicated ground plane is also recommended.
To ensure reliable startup and shutdown, it's essential to follow the recommended startup and shutdown sequences, provide a stable input voltage, and use a soft-start circuit to limit inrush current. Additionally, ensure that the output voltage is within the specified range during startup and shutdown.
The derating factors for temperature, altitude, and humidity are not explicitly stated in the datasheet. However, as a general guideline, the converter's power rating should be derated by 1% for every 1°C increase above 40°C, 1% for every 1,000 feet above sea level, and 1% for every 10% increase in humidity above 60%.
Yes, the EC3SAW-24S33HP can be used in a redundant or parallel configuration, but it's essential to follow the recommended guidelines for synchronization, current sharing, and fault detection. Additionally, ensure that the converters are identical and from the same production batch to ensure consistent performance.
The recommended input capacitor type is a low-ESR ceramic or film capacitor with a value of 10uF to 22uF, depending on the input voltage and ripple current requirements. The capacitor should be placed as close as possible to the input pins of the converter.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC3SAW-24S33HP Overview

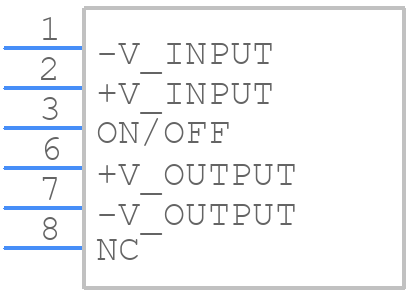

Use the download button to access the EC3SAW-24S33HP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC3SA,
or try a keyword search, such as Power Supply Modules
