The recommended PCB layout involves placing the EC4A11H-E near the power input, using a solid ground plane, and keeping the input and output capacitors close to the module. For thermal management, ensure good airflow, and consider adding a heat sink or thermal interface material if operating in high-temperature environments.
To ensure EMC and reduce EMI, use a metal enclosure, keep cables and wires away from the module, use shielded cables, and add EMI filters or common-mode chokes as needed. Also, follow the recommended PCB layout and grounding scheme.
Derating curves are available upon request from Cincon Electronics Corporation. Apply the derating curves by reducing the output power or current based on the ambient temperature, and consider the module's thermal characteristics and airflow.
Yes, the EC4A11H-E can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture, including synchronization, current sharing, and fault tolerance.
Reliability and MTBF data are available upon request from Cincon Electronics Corporation. The EC4A11H-E is designed to meet high reliability standards, and its MTBF is calculated based on industry-standard models and accelerated life testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4A11H-E Overview

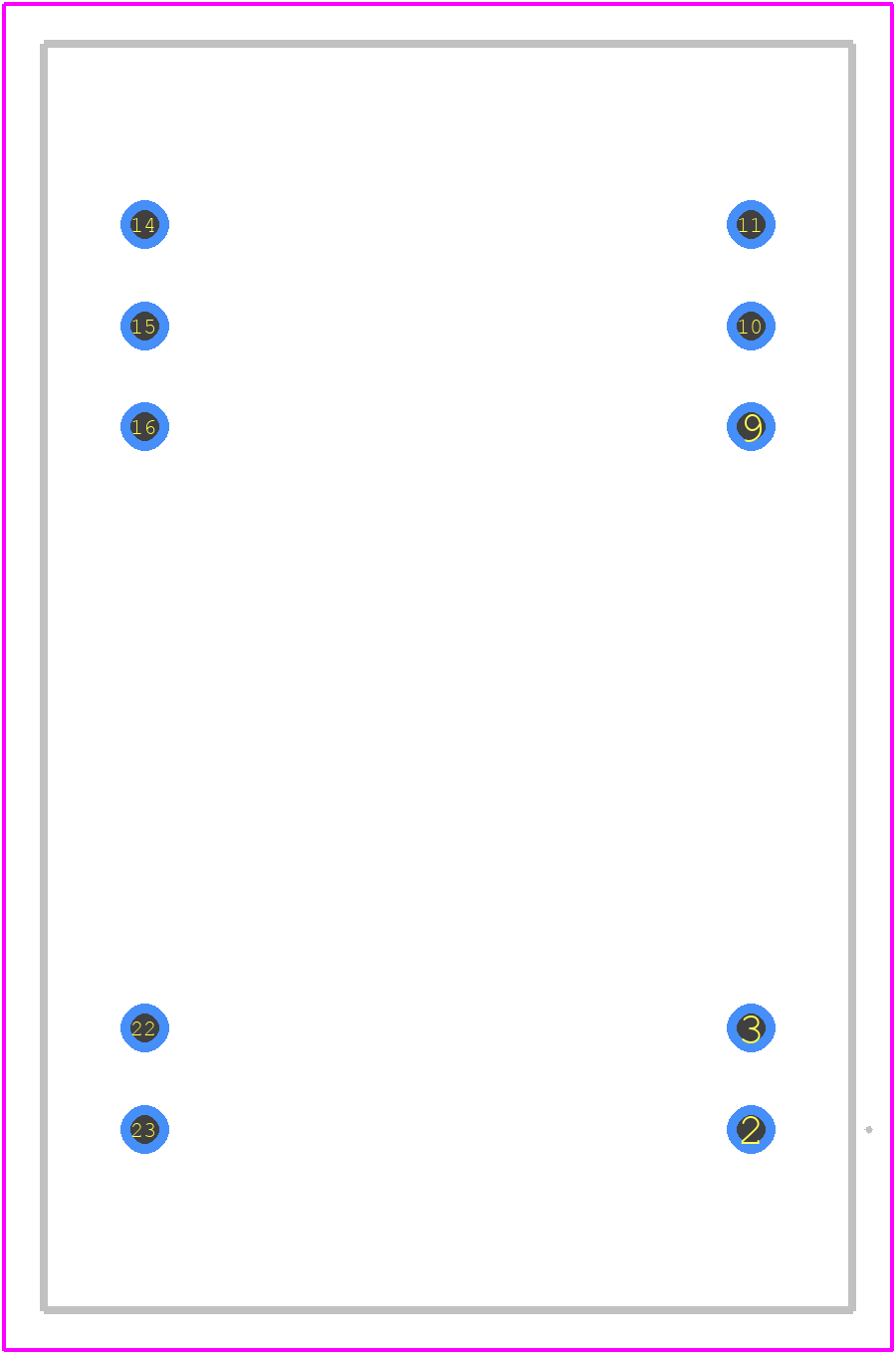

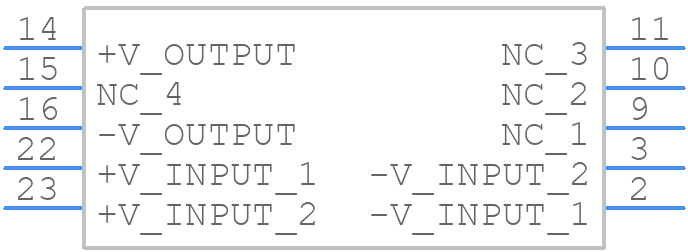

Use the download button to access the EC4A11H-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4A1,
or try a keyword search, such as Power Supply Modules
