For optimal performance, it is recommended to follow a 4-layer PCB stack-up with a dedicated ground plane, and to place thermal vias under the device to dissipate heat effectively. A minimum of 2oz copper thickness is recommended for the PCB.
To ensure EMC, it is recommended to follow proper PCB layout practices, use a metal shield around the device, and add EMI filters on the input and output lines. Additionally, ensure that the device is properly grounded and decoupled.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
To troubleshoot common issues, check the input voltage, output load, and PCB layout for any errors or inconsistencies. Verify that the device is properly cooled and that the thermal management is adequate. Consult the datasheet and application notes for specific troubleshooting guidelines.
The EC4A11H is rated for industrial temperature range (-40°C to 85°C). For high-reliability or high-temperature applications, it is recommended to consult with Cincon Electronics Corporation for customized solutions or to consider using a more specialized device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4A11H Overview

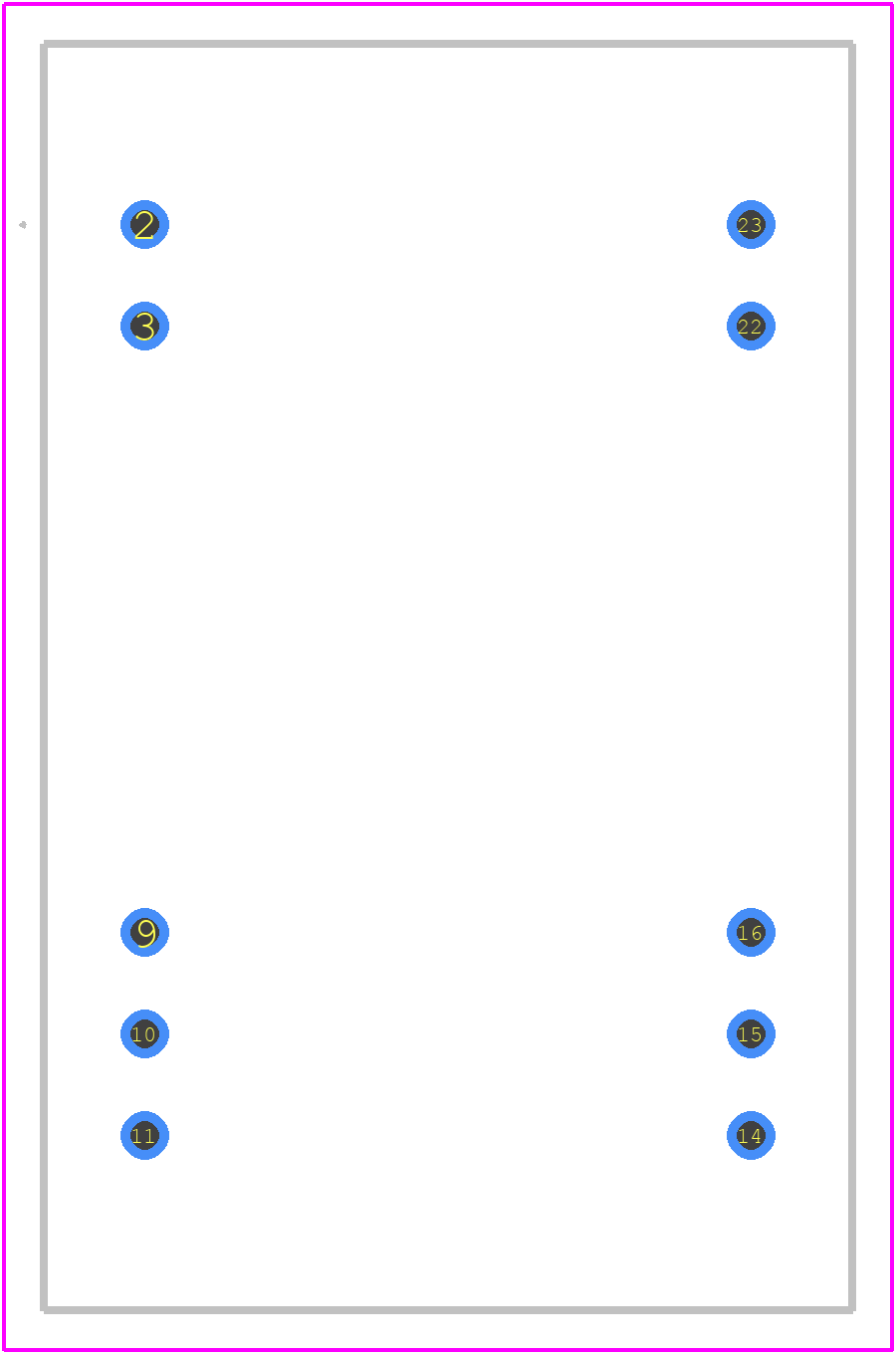

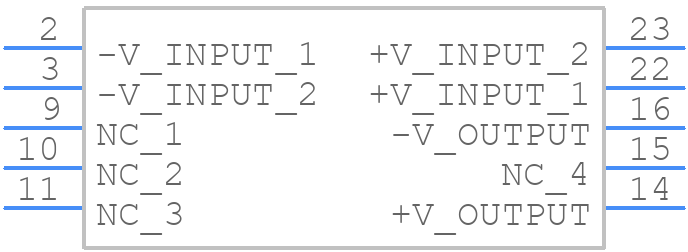

Use the download button to access the EC4A11H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4A1,
or try a keyword search, such as Power Supply Modules
