EC4A15 footprint, schematic symbol and 3D model by Cincon

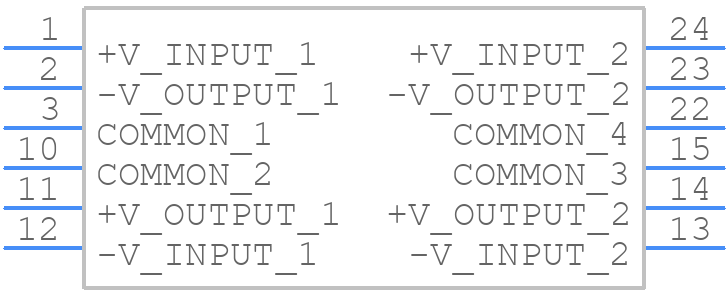

Symbol

click to zoom

PCB Footprints

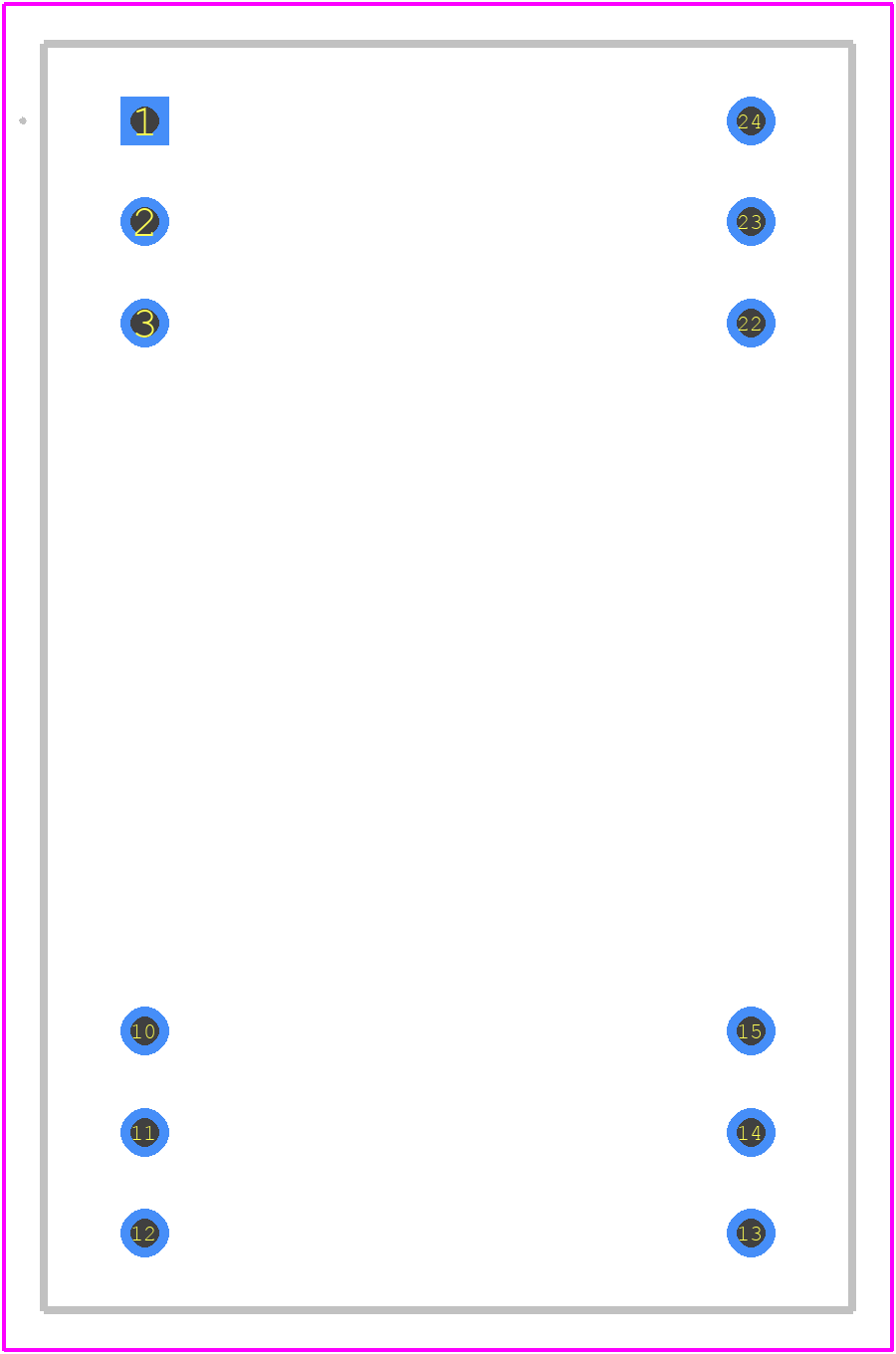

EC4A15 - Cincon PCB footprint - Other - Other - 31.8mm x 20.33mm x 10.2mm

click to zoom

3D Models

EC4A15 - Cincon - 3D model - Other - 31.8mm x 20.33mm x 10.2mm

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EC4A15
Part Number EC4A15
Manufacturer Cincon
Pin Count 12
Part Category Power Supply
Package Category Other
Footprint Name Other - 31.8mm x 20.33mm x 10.2mm
Released Date Sep 14, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EC4A15 Details

Manufacturer Part Number:
EC4A15
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
DIP
Package Description:
Module-14
Pin Count:
24/14
ECCN Code:
EAR99
Manufacturer:
Cincon Electronics Corporation
YTEOL:
6
Additional Feature:
ALSO OPERATES WITH -15 V
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDMA-T14
Length:
31.81 mm
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
14
Operating Temperature-Max:
71 °C
Operating Temperature-Min:
-25 °C
Output Current-Max:
0.19 A
Output Voltage-Max:
15.3 V
Output Voltage-Min:
14.7 V
Output Voltage-Nom:
15 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP12/24,.6
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Qualification Status:
Not Qualified
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
COMMERCIAL EXTENDED
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
3 W
Trim/Adjustable Output:
NO
Width:
20.3 mm

EC4A15 Frequently Asked Questions (FAQs)

Cincon recommends a PCB layout with a solid ground plane and a minimum of 2oz copper thickness to ensure optimal thermal performance. Additionally, keeping the component away from heat sources and using thermal vias can help reduce thermal resistance.
To ensure reliable operation in high-vibration environments, Cincon recommends securing the EC4A15 with a suitable mounting method, such as screwing or adhesive, and using a vibration-dampening material like silicone or rubber. Additionally, ensuring proper PCB design and component placement can help minimize the effects of vibration.
Cincon recommends limiting the input capacitor ripple current to 20% of the maximum rated current to ensure reliable operation and prevent overheating. Exceeding this limit may reduce the lifespan of the component.
Yes, the EC4A15 can be used in a parallel configuration to increase output power. However, Cincon recommends using a master-slave configuration with a single output voltage sense point to ensure stable operation and prevent oscillations.
Cincon recommends using an input fuse with a rating of 2-3 times the maximum input current to ensure protection against overcurrent conditions. The exact fuse rating may vary depending on the specific application and environmental conditions.

Trust Checks

Community Provided

System Verified

Community Approved

EC4A15 Overview

Use the download button to access the EC4A15 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EC4A1, or try a keyword search, such as Power Supply Modules
