EC4A15H - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, 5 to 6 Watt, 2:1 Input Range, 18-36VDC Input, +/-15VDC Output, 3KVDC min. Isolation, Non-Conductive Black Plastic, DIP-24 1.25x0.80x0.40"

Download EC4A15H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

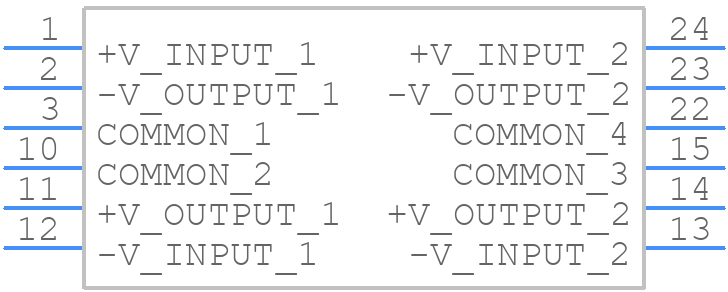

Symbol
EC4A15H - Cincon - PCB symbol
click to zoom

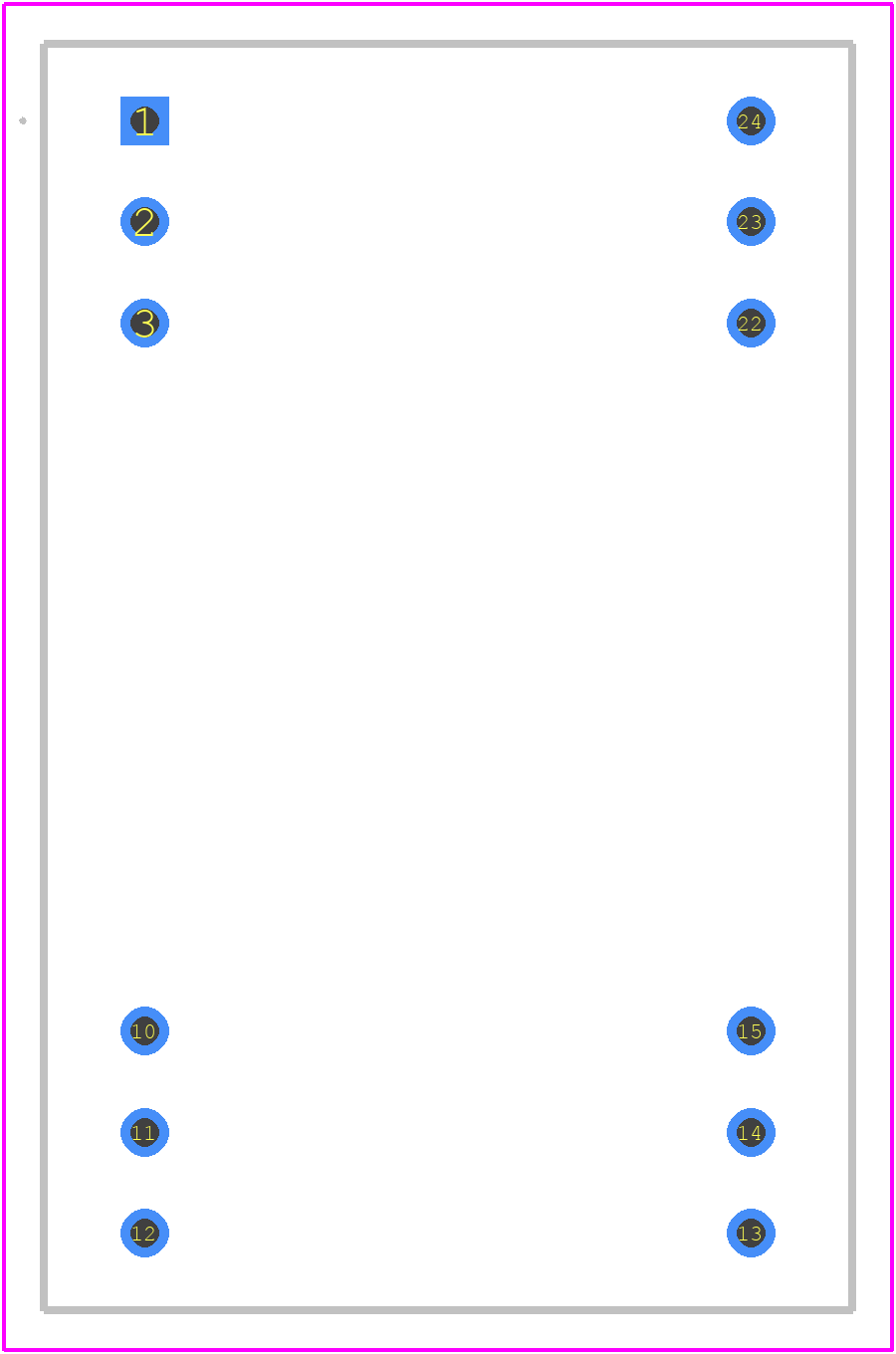

PCB Footprints
EC4A15H - Cincon PCB footprint - Other - Other - EC4A15H-2
click to zoom
3D Models
EC4A15H - Cincon - 3D model - Other - EC4A15H-2
click to zoom

EC4A15H Details

  • Manufacturer Part Number:

    EC4A15H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-10

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDIP-T10

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.19 A

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP10/24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5.7 W

EC4A15H Frequently Asked Questions (FAQs)

  • Cincon recommends a PCB layout with a solid ground plane and thermal vias under the device to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable start-up and shutdown, Cincon recommends a soft-start circuit to limit the inrush current and a shutdown circuit to discharge the output capacitors. Additionally, a minimum input voltage of 10.5V is recommended for reliable start-up.
  • Cincon recommends a maximum output capacitance of 220uF to prevent oscillation and ensure stability. Exceeding this value may lead to instability or oscillation in the converter.
  • Cincon recommends using a TVS (Transient Voltage Suppressor) diode or a surge protector at the input to protect the converter from voltage transients and surges. A fuse or a PTC (Positive Temperature Coefficient) thermistor can also be used to protect the converter from overcurrent conditions.
  • Cincon recommends an input voltage range of 12V to 15V for optimal efficiency. Operating the converter outside this range may result in reduced efficiency and increased heat generation.
