The recommended PCB layout involves placing the EC4AU11HM near the power input, using a solid ground plane, and keeping the input and output traces separate. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
To ensure EMC and reduce EMI, use a metal shielded enclosure, keep the converter away from sensitive components, use a common-mode choke, and follow proper PCB layout and grounding techniques.
The maximum allowable capacitance on the output side is 10uF, and on the input side, it's 22uF. Exceeding these values may affect the converter's stability and performance.
Yes, the EC4AU11HM can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization, current sharing, and fault tolerance.
The derating factors for altitude, temperature, and humidity are not explicitly stated in the datasheet. However, as a general guideline, consider derating the converter's power rating by 1% per 1,000 feet above sea level, and by 1-2% per 10°C above the recommended operating temperature range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4AU11HM Overview

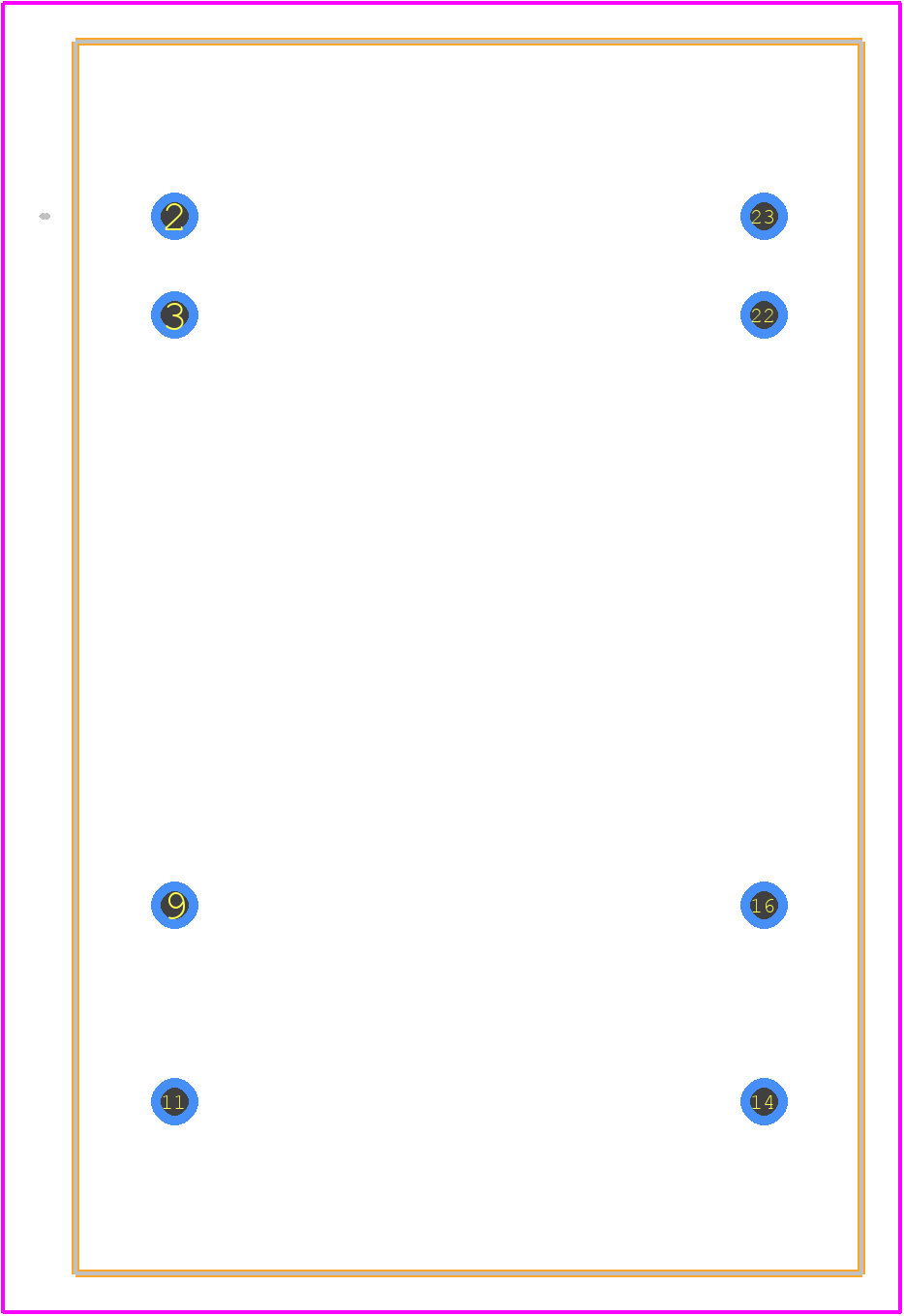

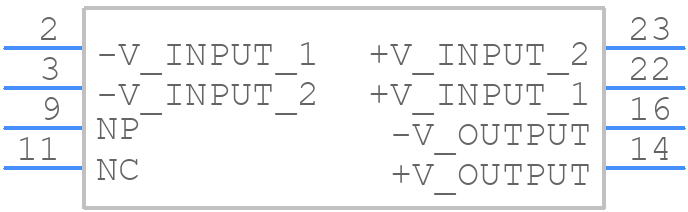

Use the download button to access the EC4AU11HM schematic symbol, PCB footprint, and 3D model.
