A good PCB layout for the EC4SAW-24S05N would involve keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded cable for the input and output connections to reduce EMI.
To ensure the reliability and longevity of the EC4SAW-24S05N, it's essential to operate it within the recommended temperature range, avoid overvoltage and overcurrent conditions, and provide adequate cooling. Additionally, it's recommended to follow the recommended soldering and handling procedures to prevent damage during assembly.
Yes, the EC4SAW-24S05N is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to follow the recommended mounting and screw torque specifications to ensure the module is securely fastened to the PCB or chassis.
To troubleshoot issues with the EC4SAW-24S05N, start by checking the input voltage and current, as well as the output voltage and current. Verify that the module is properly soldered and that there are no signs of physical damage. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Cincon Electronics Corporation's technical support.
The EC4SAW-24S05N meets various safety and regulatory requirements, including UL, CE, and RoHS. However, it's essential to verify that the module meets the specific requirements of your application, including any necessary certifications or approvals. Consult the datasheet and application notes, and contact Cincon Electronics Corporation's technical support if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4SAW-24S05N Overview

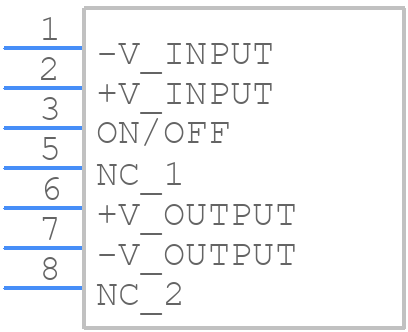

Use the download button to access the EC4SAW-24S05N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4SA,
or try a keyword search, such as Power Supply Modules
