A good PCB layout for the EC4SAW-48S05N would involve keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output cables.
To ensure reliability in high-temperature environments, make sure to follow the recommended derating curves, provide adequate airflow, and consider using a heat sink or thermal interface material to reduce the operating temperature of the module.
Exceeding the maximum input voltage rating of the EC4SAW-48S05N can cause permanent damage to the module, including damage to the internal components, and may lead to a reduction in the module's lifespan or even complete failure.
Yes, the EC4SAW-48S05N can be used in a redundant or parallel configuration to achieve higher power output or to provide redundancy in critical applications. However, it is essential to follow the recommended configuration guidelines and ensure proper synchronization and control of the modules.
The EC4SAW-48S05N is designed to meet the CISPR 22 and FCC Part 15 Class B EMI standards. To ensure compliance, follow proper PCB layout and grounding practices, use EMI filters or shielding if necessary, and consider conducting EMI testing to ensure compliance with relevant standards.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4SAW-48S05N Overview

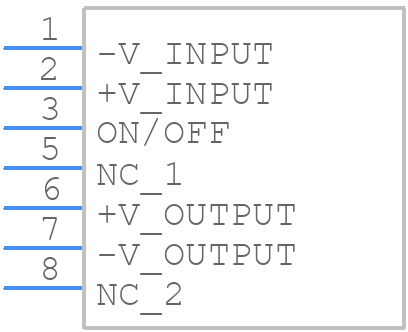

Use the download button to access the EC4SAW-48S05N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4SA,
or try a keyword search, such as Power Supply Modules
