EC4SBW-24S05 - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, 20 Watt, 4:1 Input Range, 5VDC Output, 9-36VDC Input, 4000mA max., 4000uF

Download EC4SBW-24S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EC4SBW-24S05 - Cincon - PCB symbol
click to zoom
PCB Footprints

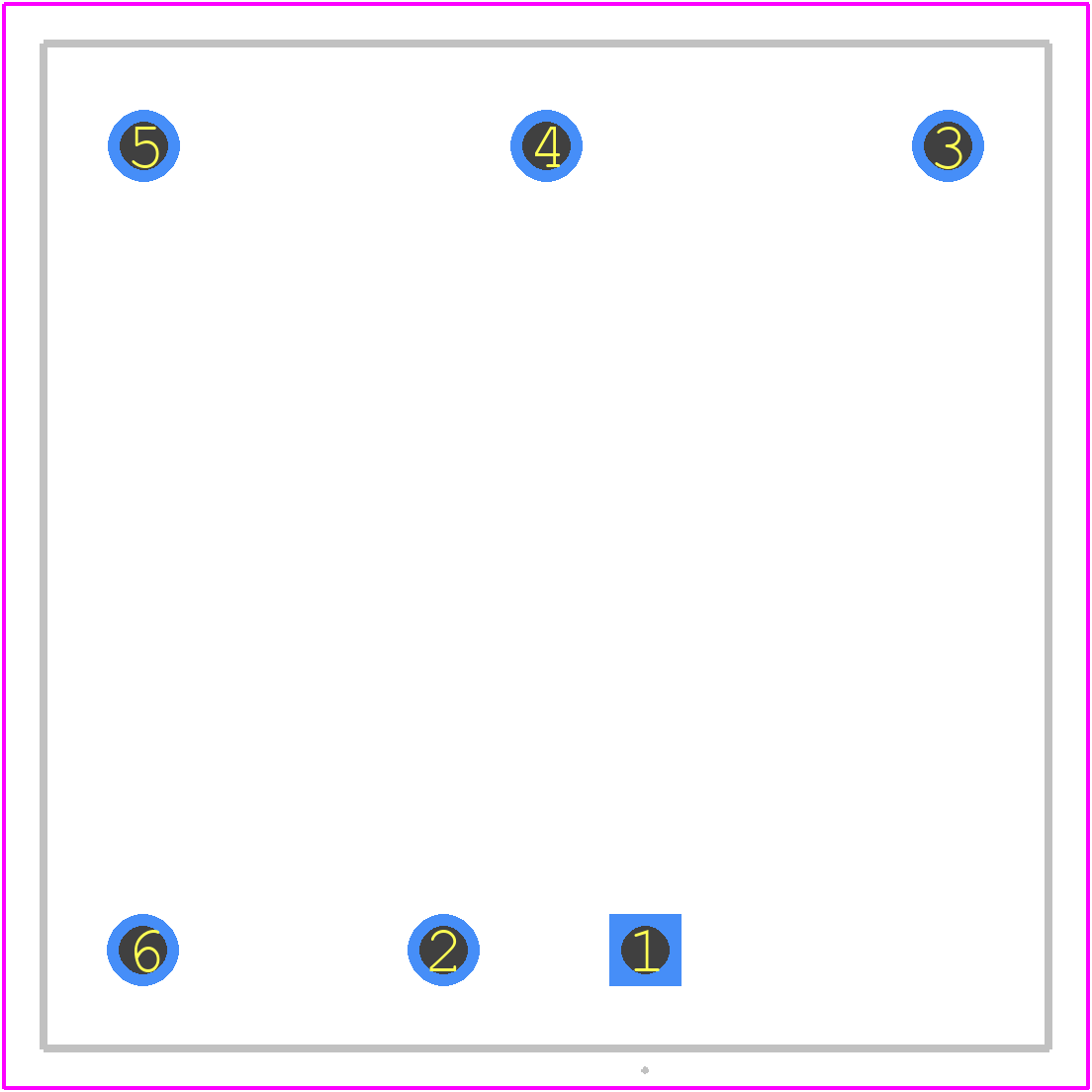

EC4SBW-24S05 - Cincon PCB footprint - Other - Other - EC4SBW-24S05-1
click to zoom
3D Models
EC4SBW-24S05 - Cincon - 3D model - Other - EC4SBW-24S05-1
click to zoom

EC4SBW-24S05 Details

  • Manufacturer Part Number:

    EC4SBW-24S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, EN, UL

  • Efficiency (Main Output):

    90.5%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P6

  • Length:

    25.4 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,.8

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.026 Vrms

  • Screening Level:

    IEC/EN/UL 62368-1

  • Seated Height-Max:

    11.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.02 s

  • Width:

    25.4 mm
