The recommended PCB layout involves keeping the input and output capacitors close to the converter, using a solid ground plane, and minimizing the loop area of the input and output currents. Thermal management involves providing adequate airflow, using a heat sink if necessary, and keeping the ambient temperature within the specified range.
To ensure EMC, follow proper PCB layout and grounding practices, use shielding if necessary, and ensure that the converter is operated within its specified frequency range. Additionally, consider using EMI filters or common-mode chokes to reduce electromagnetic interference.
The EC4SBW-48S05 can tolerate a maximum input voltage deviation of ±10% from the nominal 48V input, which means the input voltage can range from 43.2V to 52.8V without affecting the converter's performance or reliability.
Yes, the EC4SBW-48S05 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization, current sharing, and fault tolerance. Consult with Cincon Electronics Corporation or a qualified engineer for guidance on implementing such a configuration.
The typical efficiency of the EC4SBW-48S05 is around 92-95% at full load, depending on the input voltage and operating temperature. Efficiency may decrease at lower loads or higher temperatures, but the converter is designed to maintain a high efficiency across its operating range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
EC4SBW-48S05 Overview

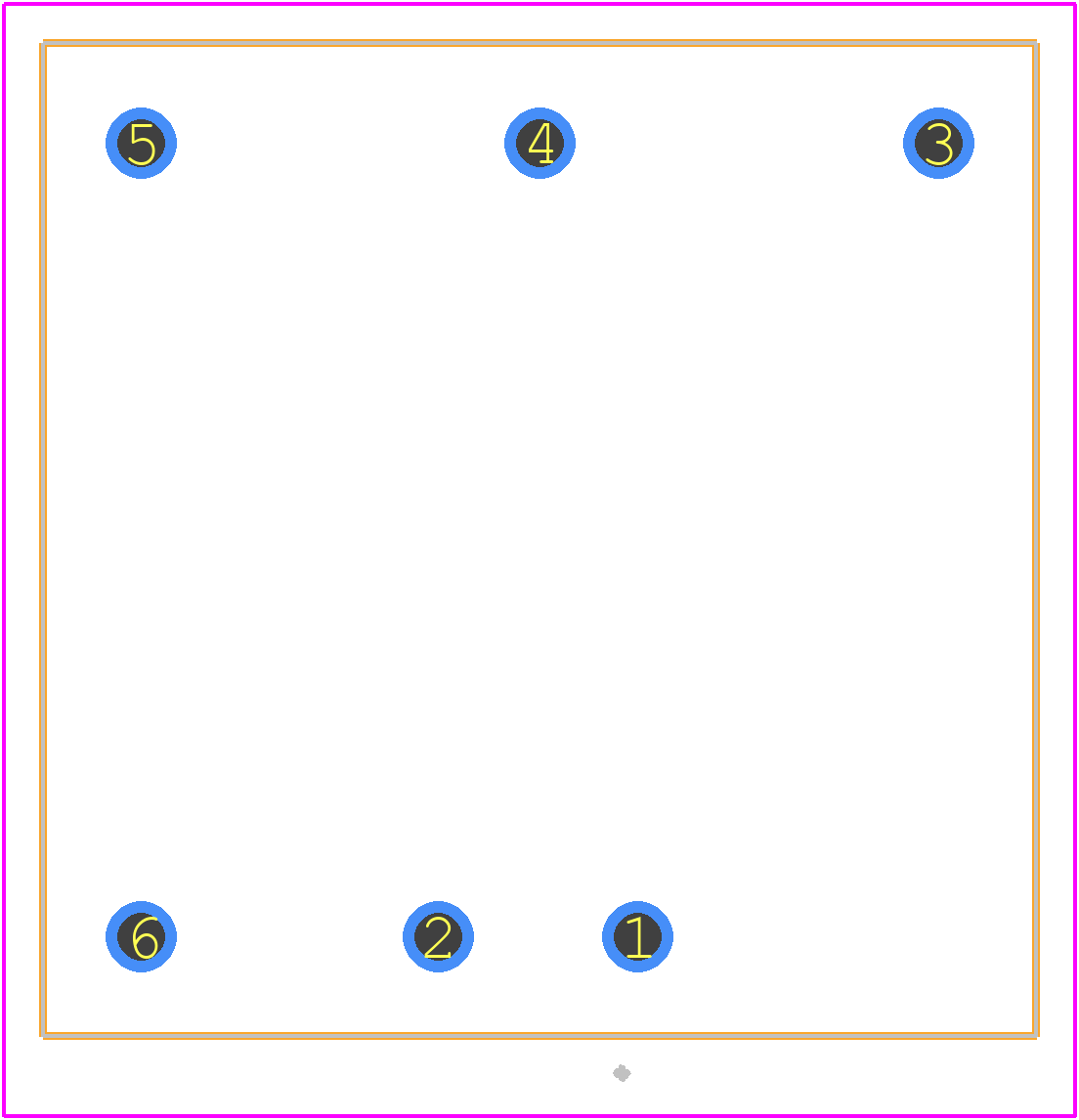

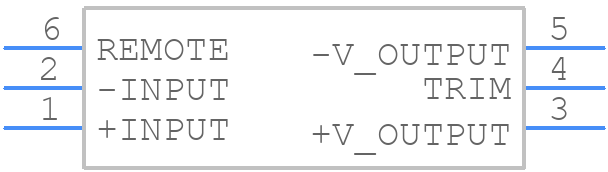

Use the download button to access the EC4SBW-48S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4SB,
or try a keyword search, such as Power Supply Modules
