EC5A-12S05 - Cincon

Description: Non-Isolated DC/DC Converters DC-DC Converter, 6 to 24 Watt, 9-32VDC Input, 5VDC Output, DIP 1.25x0.80x0.40"

Download EC5A-12S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

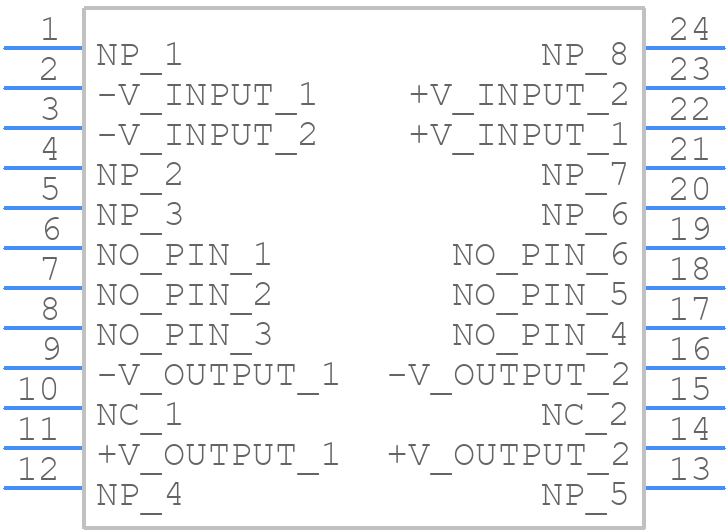

Symbol
EC5A-12S05 - Cincon - PCB symbol
click to zoom

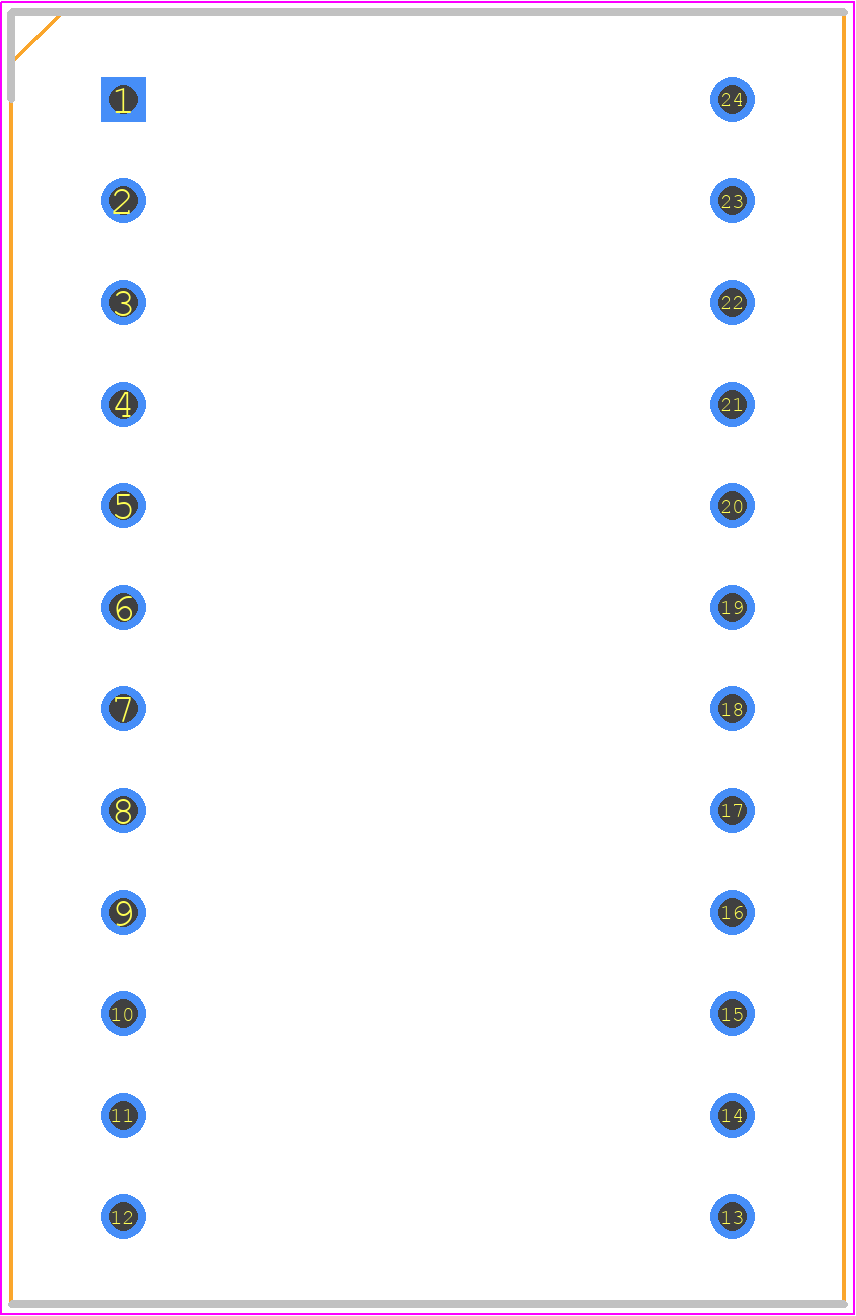

PCB Footprints
EC5A-12S05 - Cincon PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - EC5A-12S05
click to zoom
3D Models
EC5A-12S05 - Cincon - 3D model - Dual-In-Line Sockets - EC5A-12S05
click to zoom

EC5A-12S05 Details

  • Manufacturer Part Number:

    EC5A-12S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24/14

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XDMA-P14

  • Length:

    31.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

EC5A-12S05 Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a dedicated ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the module for airflow and heat dissipation.
  • Use a metal enclosure, ensure proper grounding, and add EMI filters or shielding if necessary. Follow Cincon's recommended layout and component placement guidelines.
  • Derating curves are available upon request from Cincon. Generally, derating by 10-20% for voltage and current can help ensure long-term reliability and prevent overheating.
  • Yes, but ensure the module is properly secured to the PCB and the PCB is securely fastened to the chassis. Add mechanical dampening or shock-absorbing materials if necessary.
  • Store the module in a dry, cool environment (20-30°C, 60-70% RH). Handle the module by the edges, avoid bending or flexing the PCB, and use anti-static precautions.
