OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.0265125 Vrms
Screening Level:
EN 50155, EN 45545-2, IEC/EN/UL 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
8 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.0035 s
Width:
20.3 mm
EC6AW-24S05 Frequently Asked Questions (FAQs)
A good rule of thumb is to ensure a minimum of 1-2 inches of clearance around the converter for airflow, and to use a 2-4 layer PCB with a solid ground plane to reduce EMI. Thermal management can be achieved through the use of thermal vias, heat sinks, and/or thermal interface materials.
To minimize EMI emissions, use a shielded enclosure, keep the converter away from sensitive circuits, and use EMI filters or common-mode chokes on the input and output lines. Additionally, ensure the PCB layout is optimized for EMI reduction, and consider using a metal can or shielded package for the converter.
The derating curves can be obtained from Cincon Electronics Corporation directly or through their authorized distributors. Typically, the output power and efficiency will decrease as the temperature increases, with a recommended operating temperature range of -40°C to 85°C.
Yes, the EC6AW-24S05 can be used in a redundant or parallel configuration, but it's essential to ensure proper synchronization and current sharing between the converters. Consult with Cincon Electronics Corporation or a qualified engineer to design a reliable and efficient parallel or redundant system.
The recommended filtering components will depend on the specific application and system requirements. However, as a general guideline, consider using a π-filter (C-L-C) or a T-filter (L-C-L) on the input and output lines, with component values selected based on the converter's switching frequency and the system's noise requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC6AW-24S05 Overview

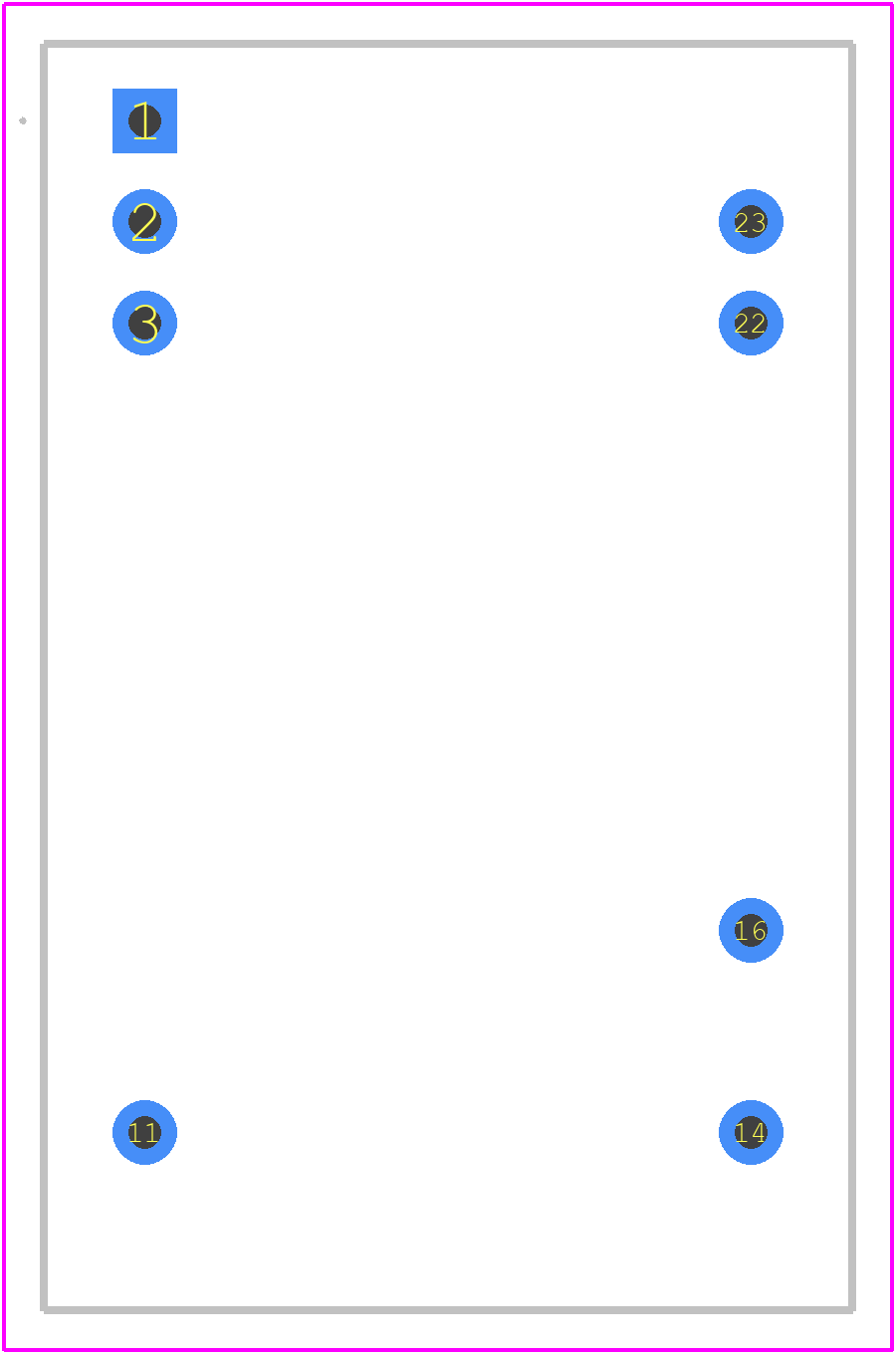

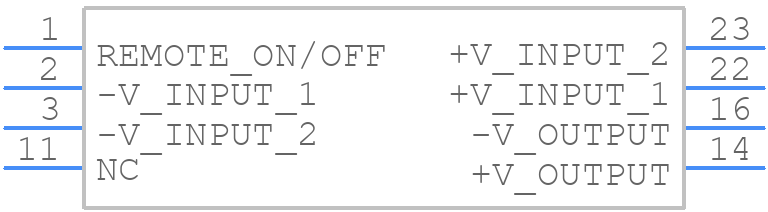

Use the download button to access the EC6AW-24S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC6AW,
or try a keyword search, such as Power Supply Modules
