A good PCB layout for the EC6C16 should prioritize thermal dissipation. Place the converter near a metal edge or a thermal pad, and ensure good airflow around the component. Use thermal vias to dissipate heat to the bottom layer or a heat sink. Keep the input and output capacitors close to the converter to minimize noise and EMI.
To ensure reliable start-up and shutdown, add a soft-start circuit to limit the inrush current during power-on. Use a voltage supervisor or a power-good signal to monitor the output voltage and prevent the system from malfunctioning during power-up or power-down. Also, ensure that the input voltage rises and falls slowly to prevent voltage spikes or dips.
The recommended input capacitor is a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10uF to 22uF. For the output, use a low-ESR ceramic or electrolytic capacitor with a value between 10uF to 47uF. The capacitor selection should consider the output voltage, output current, and ripple requirements.
To minimize EMI and noise, use a shielded enclosure, and keep the input and output cables short and away from each other. Add a common-mode choke or a ferrite bead to the input and output lines to filter out high-frequency noise. Use a snubber circuit or a ferrite bead on the output to reduce ringing and oscillations.
The maximum ambient temperature for reliable operation of the EC6C16 is 85°C. However, the converter's performance and reliability may degrade above 70°C. Ensure good airflow and heat dissipation to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC6C16 Overview

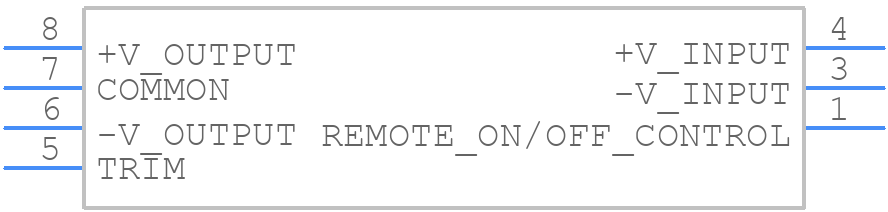

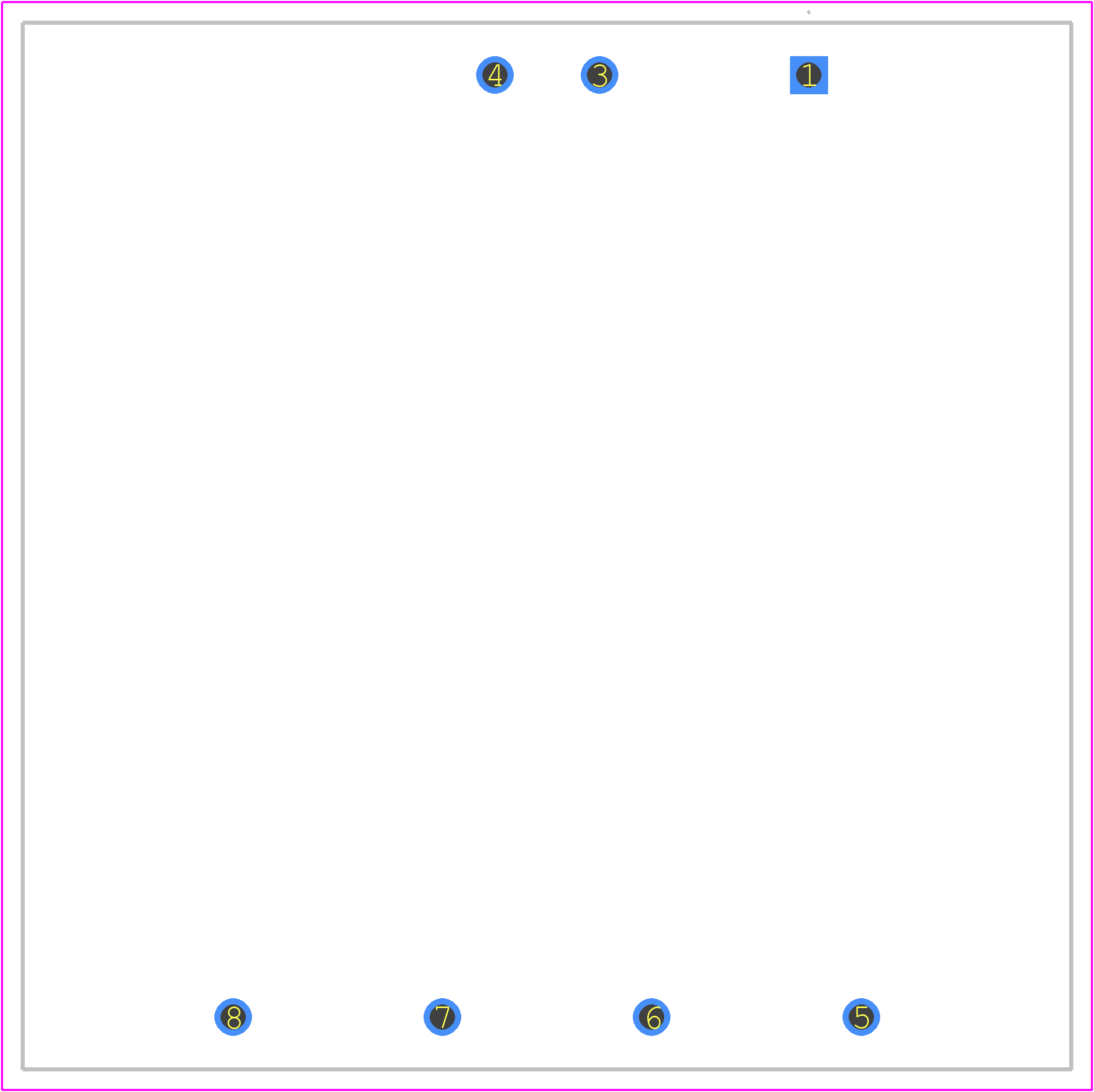

Use the download button to access the EC6C16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC6C1,
or try a keyword search, such as Power Supply Modules
