EC7AW-24S05 - Cincon

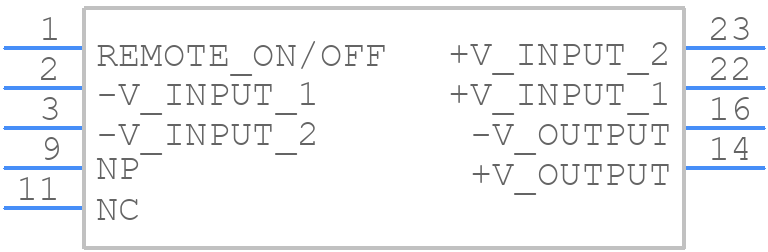

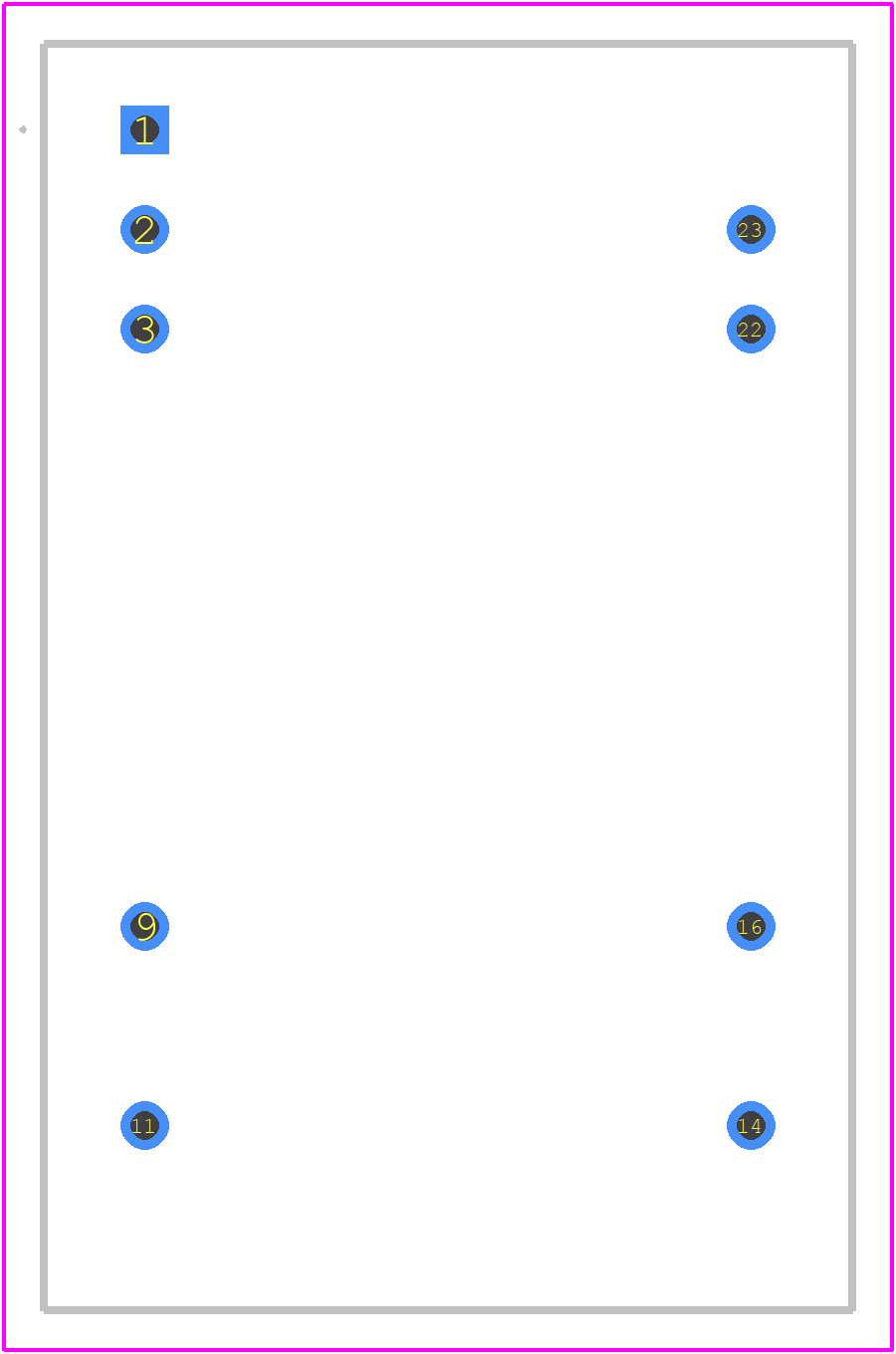

EC7AW-24S05 Details

• Manufacturer Part Number:

  EC7AW-24S05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DIP-24/8

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, IEC, EN, UL

• Efficiency (Main Output):

  86%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-MDIP-T8

• Length:

  31.8 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2 A

• Output Voltage-Max:

  5.05 V

• Output Voltage-Min:

  4.95 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  METAL

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8/24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Screening Level:

  IEC/EN/UL 62368-1

• Seated Height-Max:

  10.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.5 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  10 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.00025 s

• Width:

  20.3 mm
