EC7AW18-72S05 Details

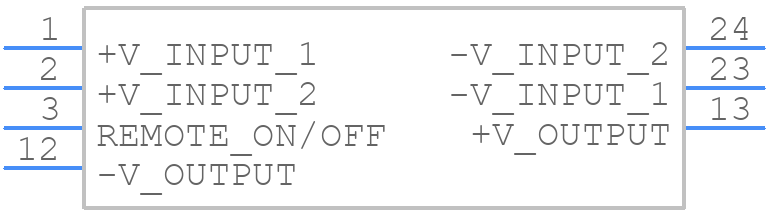

• Manufacturer Part Number:

  EC7AW18-72S05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

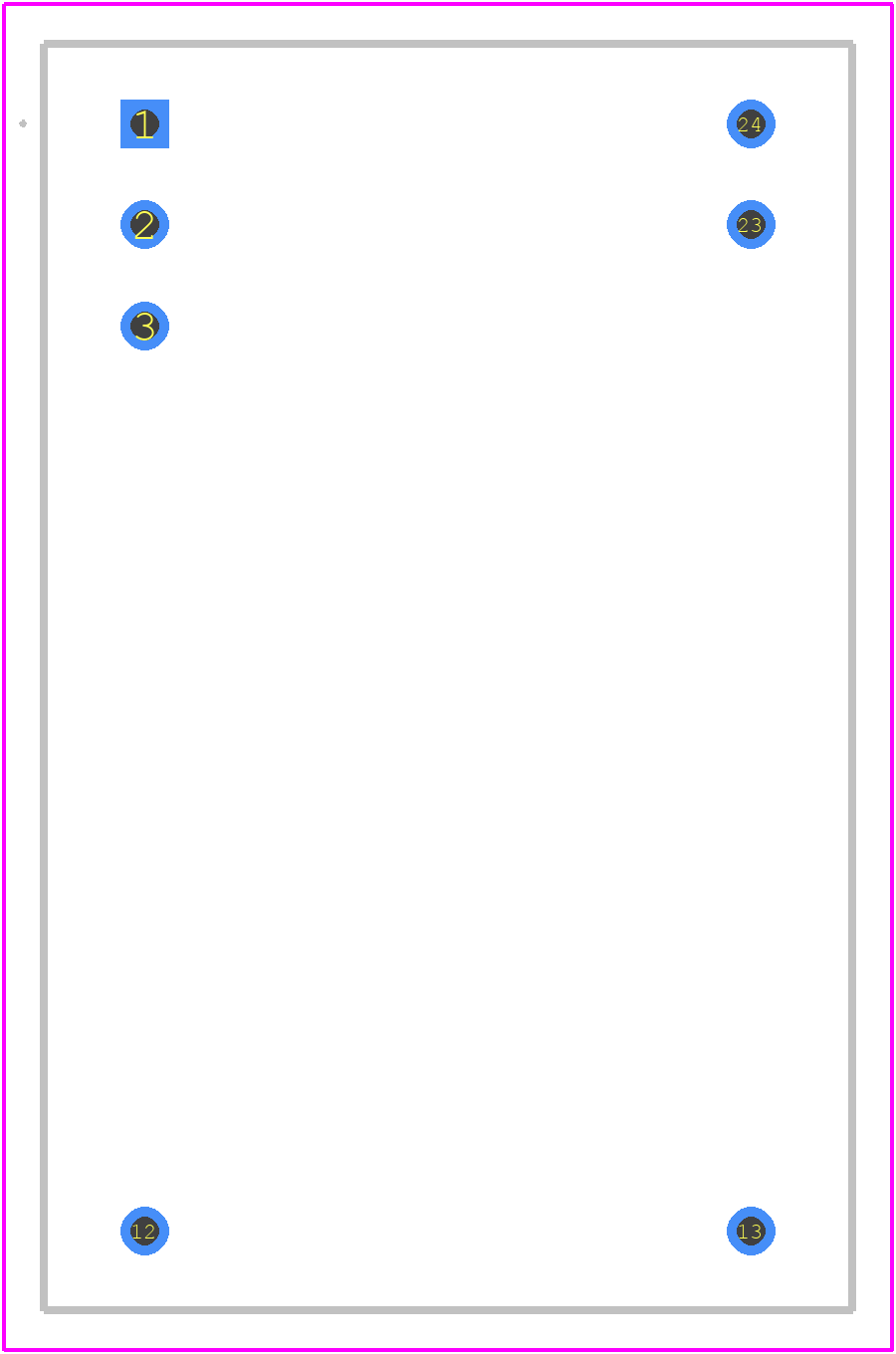

• Package Description:

  DIP-24/7

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  EN, IEC, UL

• Efficiency (Main Output):

  82%

• Input Voltage-Max:

  160 V

• Input Voltage-Min:

  8.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDIP-P7

• JESD-609 Code:

  e3

• Length:

  31.8 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2 A

• Output Voltage-Max:

  5.05 V

• Output Voltage-Min:

  4.95 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC

• Package Code:

  DIP

• Package Equivalence Code:

  DIP7/24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  OVER CURRENT, OVER VOLTAGE, UNDER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.04 Vrms

• Screening Level:

  IEC/UL 62368-1

• Seated Height-Max:

  13.2 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  10 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.015 s

• Width:

  20.3 mm
