EC7BW-110S12 - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, 20 Watt, 4:1 Input Range, for Railway System, 43-160VDC Input, 12VDC Output, 90% Efficiency

Download EC7BW-110S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EC7BW-110S12 - Cincon - PCB symbol
click to zoom
PCB Footprints

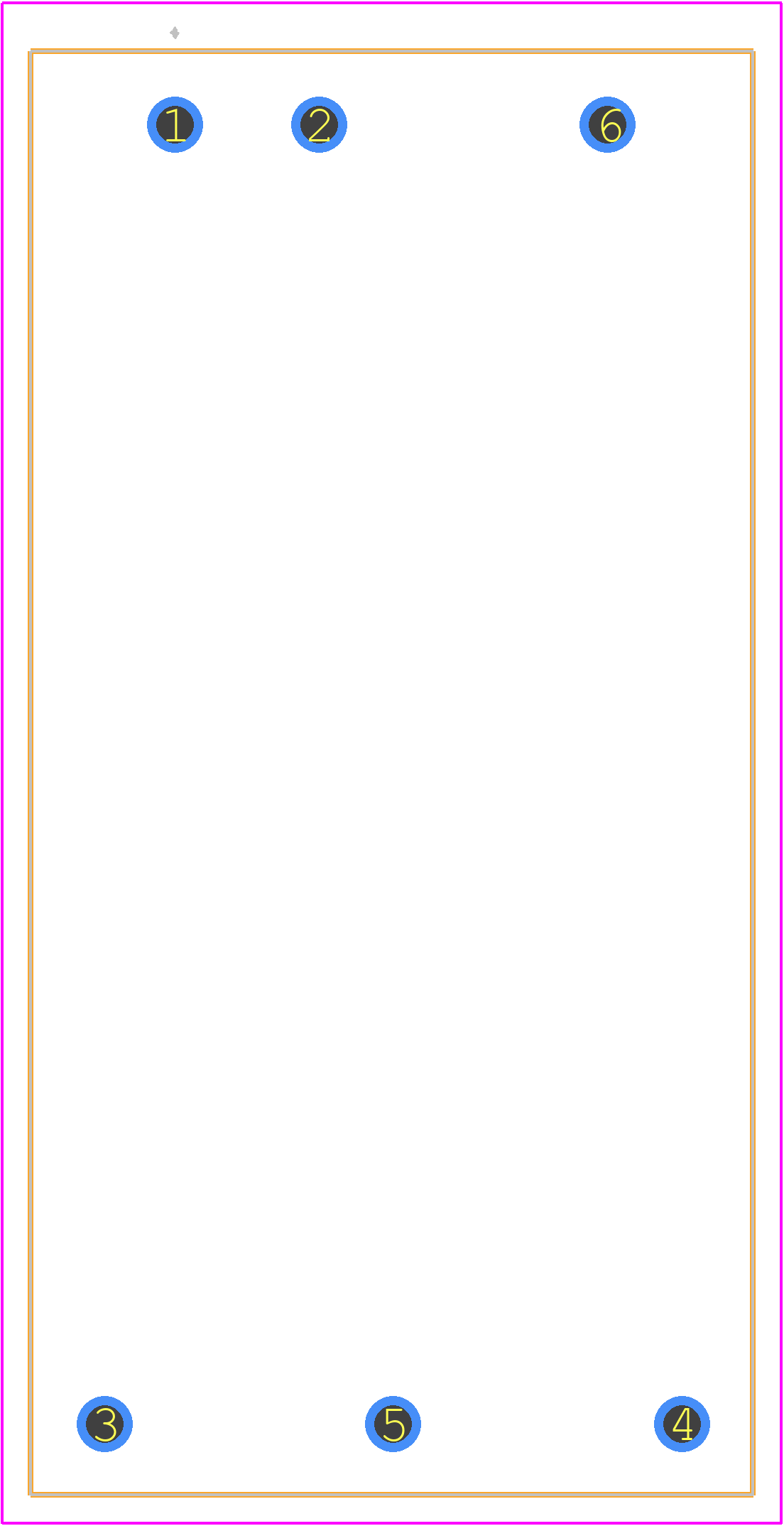

EC7BW-110S12 - Cincon PCB footprint - Other - Other - EC7BW-110S12-1
click to zoom
3D Models
EC7BW-110S12 - Cincon - 3D model - Other - EC7BW-110S12-1
click to zoom

EC7BW-110S12 Details

  • Manufacturer Part Number:

    EC7BW-110S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, IEC, UKCA, UL

  • Efficiency (Main Output):

    90%

  • Input Voltage-Max:

    160 V

  • Input Voltage-Min:

    43 V

  • Input Voltage-Nom:

    110 V

  • JESD-30 Code:

    R-XDMA-P6

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.67 A

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,1.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT, OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Screening Level:

    EN 50155, EN 45545-2, IEC/EN/UL 62368-1

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.015 s

  • Width:

    25.4 mm

EC7BW-110S12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout is to keep the input and output capacitors close to the converter, and to use a solid ground plane to reduce noise and EMI. A 4-layer PCB with a dedicated power plane is recommended.
  • To ensure reliable start-up and shutdown, it's recommended to add a soft-start circuit to limit the inrush current, and to use a voltage supervisor to monitor the input voltage and ensure the converter is enabled only when the input voltage is within the specified range.
  • The maximum ambient temperature for reliable operation is 85°C, with a derating of 2.5% per degree above 60°C. It's recommended to provide adequate airflow and heat sinking to ensure the converter operates within the specified temperature range.
  • Yes, the EC7BW-110S12 is designed to withstand high-vibration environments, with a vibration test rating of 10G peak acceleration, 10-2000Hz frequency range. However, it's recommended to ensure the converter is properly secured to the PCB and that the PCB is designed to withstand the vibration levels.
  • The recommended input capacitor type is a low-ESR ceramic capacitor, with a value of 10-22uF. The capacitor should be rated for the maximum input voltage and should be placed close to the converter's input pins.
