The recommended PCB layout and thermal management for optimal performance can be obtained by contacting Cincon Electronics Corporation's technical support team or by referring to their application notes. They can provide guidance on heat sink design, PCB layout, and thermal management to ensure optimal performance and reliability.
Yes, Cincon Electronics Corporation recommends following proper EMI/EMC design guidelines to minimize electromagnetic interference. This includes using shielded cables, proper grounding, and filtering to ensure compliance with relevant EMI/EMC standards. Consult the datasheet and application notes for more information.
The maximum allowable capacitance for the output filter is not specified in the datasheet. However, it's recommended to follow the guidelines provided in the application notes or consult with Cincon Electronics Corporation's technical support team to determine the optimal output filter capacitance for your specific application.
The EC7BW18-72S15 is designed to meet standard environmental requirements, but it may not be suitable for high-vibration or high-shock environments without additional mechanical support or customization. Consult with Cincon Electronics Corporation's technical support team to discuss your specific requirements and determine if this converter is suitable for your application.
The MTBF rating for the EC7BW18-72S15 is not specified in the datasheet. However, Cincon Electronics Corporation can provide this information upon request. Contact their technical support team for more information on the MTBF rating and reliability data.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC7BW18-72S15 Overview

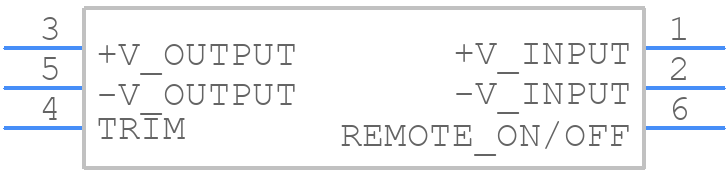

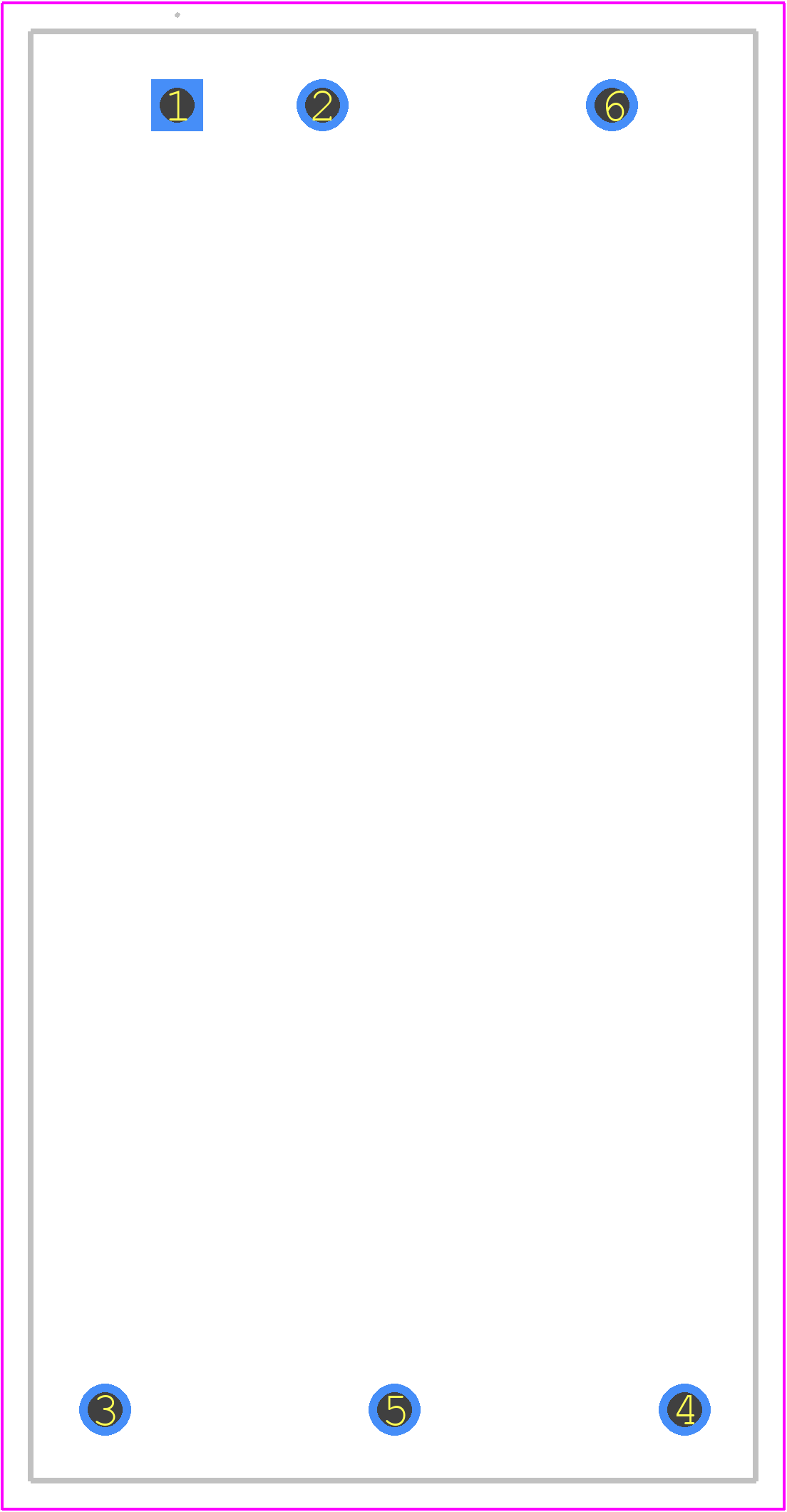

Use the download button to access the EC7BW18-72S15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC7BW,
or try a keyword search, such as Power Supply Modules
