ECA1HAM222X - Panasonic

Description: PANASONIC - ECA1HAM222X - Electrolytic Capacitor, 2200 µF, 50 V, AM Series, ± 20%, Radial Leaded, 16 mm

Download ECA1HAM222X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECA1HAM222X - Panasonic - PCB symbol
click to zoom
PCB Footprints

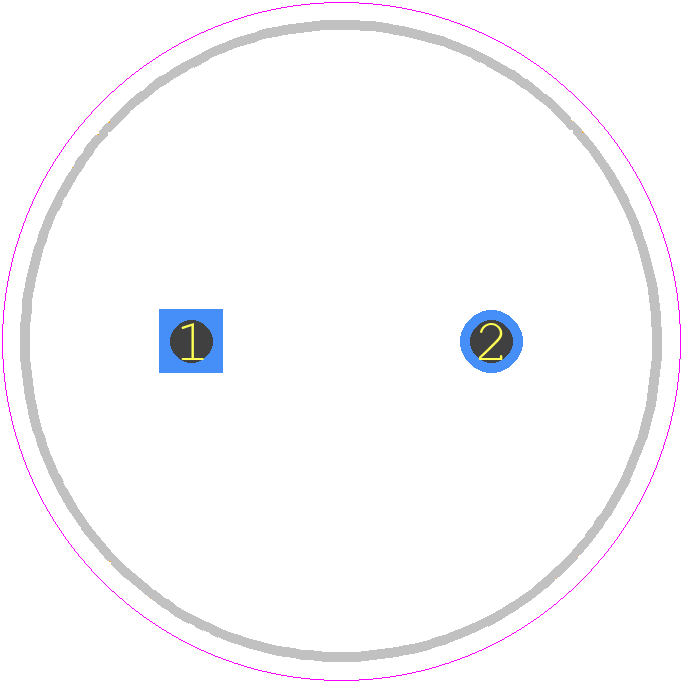

ECA1HAM222X - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 16*31.5
click to zoom
3D Models
ECA1HAM222X - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 16*31.5
click to zoom

ECA1HAM222X Details

  • Manufacturer Part Number:

    ECA1HAM222X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    1.1 mA

  • Length:

    31.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    1300 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.14

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

ECA1HAM222X Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for ECA1HAM222X is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, ECA1HAM222X is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G.
  • ECA1HAM222X has a moisture resistance rating of JIS C 60068-2-78, which means it can withstand humid environments with a relative humidity of up to 90% at 40°C.
  • The ESR of ECA1HAM222X is typically around 0.015 ohms at 100 kHz, but this value may vary depending on the frequency and operating conditions.
  • ECA1HAM222X is rated for operation up to 125°C, but its capacitance and ESR may degrade at higher temperatures. Consult the datasheet for derating information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECA1HAM222X Overview

Use the download button to access the ECA1HAM222X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECA1H, or try a keyword search, such as Aluminum Electrolytic Capacitors
