ECA1HEN101 - Panasonic

Description: Aluminium Electrolytic Capacitor, Radial Lead, Bi-polar, 105?C 1000h-2000h

Download ECA1HEN101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECA1HEN101 - Panasonic - PCB symbol
click to zoom
PCB Footprints

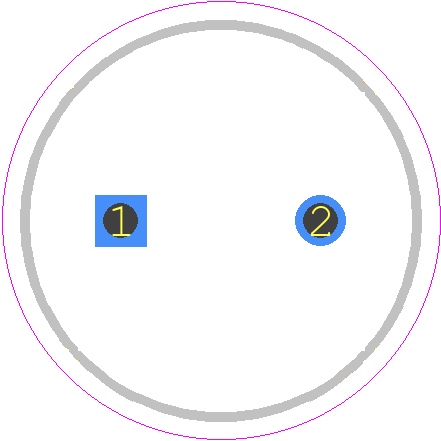

ECA1HEN101 - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10*20
click to zoom
3D Models
ECA1HEN101 - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 10*20
click to zoom

ECA1HEN101 Details

  • Manufacturer Part Number:

    ECA1HEN101

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.153 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    NON-POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    250 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

ECA1HEN101 Frequently Asked Questions (FAQs)

  • Store the component in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid exposure to direct sunlight, moisture, and extreme temperatures.
  • Yes, ECA1HEN101 is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's recommended to perform additional testing and validation for specific vibration profiles.
  • Follow standard soldering and rework procedures for surface-mount devices. Use a soldering iron with a temperature range of 200°C to 250°C, and avoid applying excessive force or pressure during handling.
  • Yes, ECA1HEN101 is compatible with lead-free soldering processes. However, ensure that the soldering temperature and profile comply with the component's specifications.
  • Follow the recommended PCB layout and land pattern provided in the Panasonic datasheet or application notes. Ensure proper thermal management and clearance around the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECA1HEN101 Overview

Use the download button to access the ECA1HEN101 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECA1H, or try a keyword search, such as Ceramic Capacitors
