ECA2AHG471 - Panasonic

Description: Panasonic Aluminium Electrolytic Capacitor 470μF 100V dc 16mm NHG Series Aluminium, Through Hole Electrolytic, ±20%

Download ECA2AHG471 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECA2AHG471 - Panasonic - PCB symbol
click to zoom
PCB Footprints

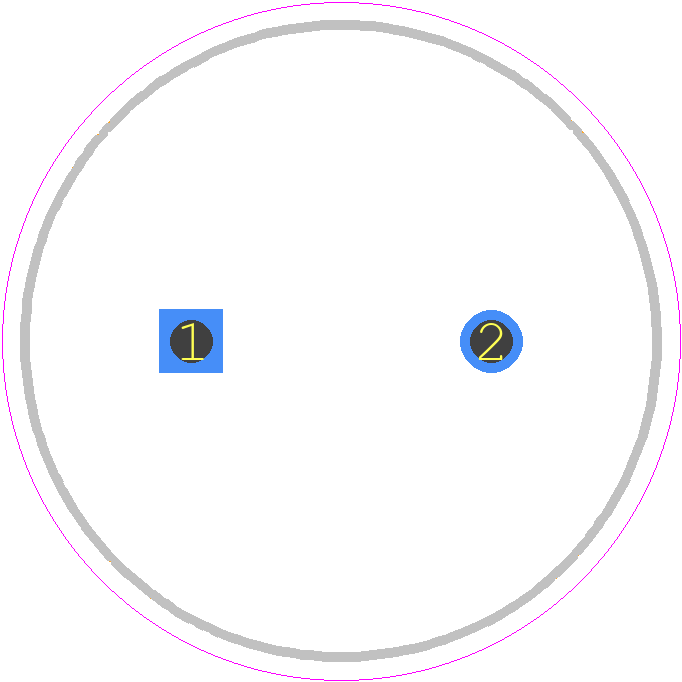

ECA2AHG471 - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 16x25
click to zoom
3D Models
ECA2AHG471 - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 16x25
click to zoom

ECA2AHG471 Details

  • Manufacturer Part Number:

    ECA2AHG471

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.83 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    715 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.08

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

ECA2AHG471 Frequently Asked Questions (FAQs)

  • The recommended land pattern for ECA2AHG471 is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape.
  • During reflow soldering, the ECA2AHG471 should be placed on the PCB with the capacitor's marked side facing upwards. The recommended reflow profile is 260°C peak temperature, with a dwell time of 30-60 seconds above 220°C.
  • The derating curve for ECA2AHG471 is not explicitly provided in the datasheet, but it can be estimated based on the capacitor's temperature coefficient. As a general guideline, the capacitance value decreases by 2-3% per 10°C increase in temperature above 25°C.
  • Yes, the ECA2AHG471 is designed to withstand vibrations up to 10G acceleration, making it suitable for use in high-vibration environments. However, it's recommended to follow proper mounting and soldering techniques to ensure the capacitor's reliability.
  • The ESR of ECA2AHG471 is not explicitly stated in the datasheet, but it can be estimated to be around 0.5-1.5 ohms, based on the capacitor's construction and materials.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECA2AHG471 Overview

Use the download button to access the ECA2AHG471 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECA2A, or try a keyword search, such as Ceramic Capacitors
