ECE1088-DZK - Microchip

Description: Interface - I/O Expanders GPIO EXPANSION SMbus

Download ECE1088-DZK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

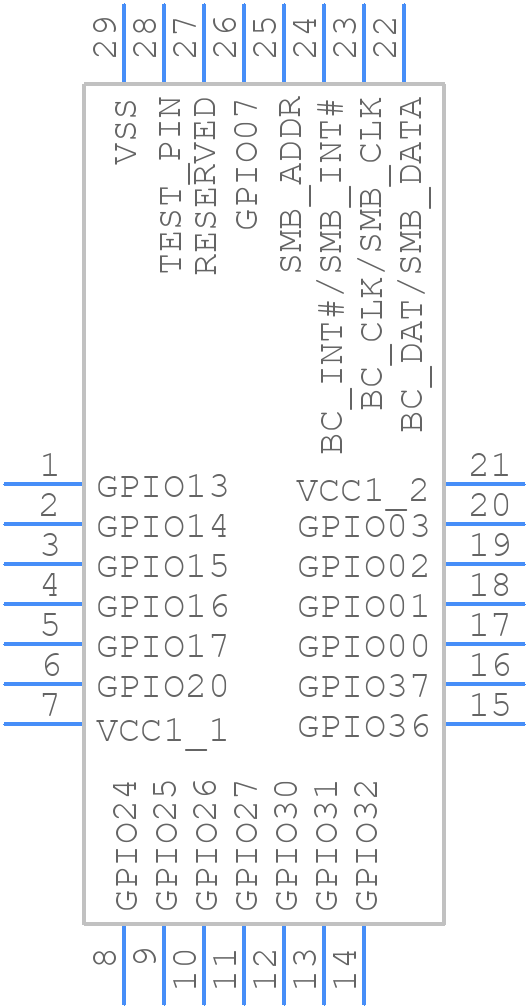

Symbol
ECE1088-DZK - Microchip - PCB symbol
click to zoom
PCB Footprints
ECE1088-DZK - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28 TERMINAL QFN 5X5MM BODY 0.5MM PITCH
click to zoom
3D Models
ECE1088-DZK - Microchip - 3D model - Quad Flat No-Lead - 28 TERMINAL QFN 5X5MM BODY 0.5MM PITCH
click to zoom

ECE1088-DZK Details

  • Manufacturer Part Number:

    ECE1088-DZK

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    QFN-28

  • Country Of Origin:

    Mainland China, Taiwan

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    111 Weeks

  • Date Of Intro:

    2018-01-12

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ECE1088-DZK Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the ECE1088-DZK evaluation board user's guide, which includes thermal vias and heat sinks to ensure optimal thermal performance.
  • The ECE1088-DZK has a low-power mode that can be enabled by setting the EN pin low and configuring the device registers according to the datasheet. Additionally, the device can be put into sleep mode by setting the SLEEP pin high.
  • The ECE1088-DZK has an operating temperature range of -40°C to +125°C, making it suitable for automotive and industrial applications.
  • Yes, the ECE1088-DZK can operate with a 3.3V power supply, but it's recommended to use a 5V power supply for optimal performance and to ensure compatibility with all features.
  • To troubleshoot communication issues, check the device's configuration, ensure proper clock settings, and verify the communication protocol used. Additionally, use tools like oscilloscopes or logic analyzers to debug the communication signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECE1088-DZK Overview

Use the download button to access the ECE1088-DZK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECE10, or try a keyword search, such as Other Consumer ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
