The recommended land pattern for ECEA1HN101U is a rectangular pad with a size of 2.5mm x 1.25mm, with a solder mask opening of 2.2mm x 1.0mm. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent thermal issues.
While ECEA1HN101U has a high operating temperature range of -55°C to +125°C, it's essential to consider the derating curve and thermal management when using it in high-temperature applications. Ensure that the component is properly cooled, and the operating temperature is within the specified range to prevent thermal runaway.
To prevent damage, store ECEA1HN101U in a dry, cool place, away from direct sunlight and moisture. During shipping, use anti-static packaging materials, and avoid bending or flexing the component. Follow the recommended storage and shipping guidelines to prevent damage and ensure reliability.
The recommended soldering profile for ECEA1HN101U is a peak temperature of 260°C, with a dwell time of 10-30 seconds. Ensure that the soldering process is within the specified temperature range to prevent damage to the component.
While ECEA1HN101U is designed to withstand some vibration, it's essential to consider the specific vibration requirements of your application. Ensure that the component is properly secured, and the PCB is designed to withstand the expected vibration levels to prevent mechanical stress and failure.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECEA1HN101U Overview

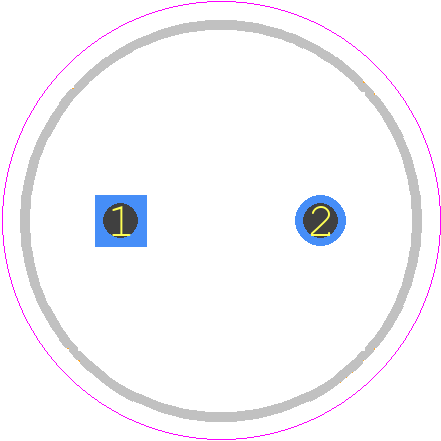

Use the download button to access the ECEA1HN101U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECEA1,
or try a keyword search, such as Aluminum Electrolytic Capacitors
