ECEV1CA100SR - Panasonic

Description: PANASONIC - ECEV1CA100SR. - CAPACITOR, CASE B 10UF 16V

Download ECEV1CA100SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECEV1CA100SR - Panasonic - PCB symbol
click to zoom
PCB Footprints

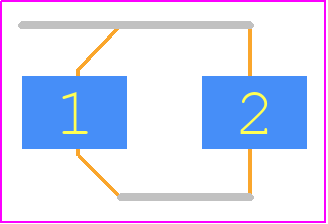

ECEV1CA100SR - Panasonic PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - B CASE
click to zoom
3D Models
ECEV1CA100SR - Panasonic - 3D model - Capacitor Al Electrolytic - B CASE
click to zoom

ECEV1CA100SR Details

  • Manufacturer Part Number:

    ECEV1CA100SR

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5.4 MMH CHIP

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Capacitance:

    10 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.4 mm

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.003 mA

  • Length:

    4.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TAPE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    28 mA

  • Size Code:

    2217

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    FLAT

  • Width:

    4.3 mm

ECEV1CA100SR Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the ECEV1CA100SR is designed to withstand high vibrations and is suitable for use in applications with vibration levels up to 10G.
  • The ECEV1CA100SR has a moisture resistance rating of 85°C/85% RH, and it's designed to operate in humid environments. However, it's still important to follow proper storage and handling procedures to prevent moisture absorption.
  • The ESR of the ECEV1CA100SR is approximately 0.015 ohms at 100 kHz, which is relatively low and suitable for high-frequency applications.
  • The ECEV1CA100SR is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the capacitor's lifespan may be affected by prolonged exposure to high temperatures.
