ECEV1EA4R7SR - Panasonic

Description: PANASONIC - ECEV1EA4R7SR. - CAPACITOR, CASE B 4.7UF 25V

Download ECEV1EA4R7SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECEV1EA4R7SR - Panasonic - PCB symbol
click to zoom
PCB Footprints

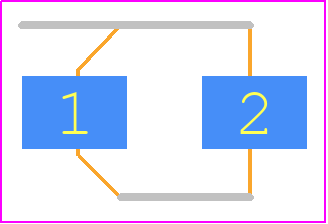

ECEV1EA4R7SR - Panasonic PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - B CASE
click to zoom
3D Models
ECEV1EA4R7SR - Panasonic - 3D model - Capacitor Al Electrolytic - B CASE
click to zoom

ECEV1EA4R7SR Details

  • Manufacturer Part Number:

    ECEV1EA4R7SR

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    5.4 MMH CHIP

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Capacitance:

    4.7 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.003 mA

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TAPE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    22 mA

  • Size Code:

    2217

  • Surface Mount:

    YES

  • Tan Delta:

    0.14

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    FLAT

ECEV1EA4R7SR Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for ECEV1EA4R7SR is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, ECEV1EA4R7SR is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.
  • The moisture sensitivity level of ECEV1EA4R7SR is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.
  • Yes, ECEV1EA4R7SR is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability and resistance to extreme temperatures.
  • The recommended storage condition for ECEV1EA4R7SR is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%.
