A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C.
Handle the device with ESD-protective equipment and follow standard ESD precautions. The device has built-in ESD protection, but it's not a substitute for proper handling and storage procedures.
Yes, the ECH8310-TL-H is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure you follow the recommended operating conditions and design guidelines for these applications.
Follow the recommended soldering profile: peak temperature 260°C, time above 217°C 60s max. For rework, use a low-temperature soldering iron (< 350°C) and avoid applying excessive force or heat.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECH8310-TL-H Overview

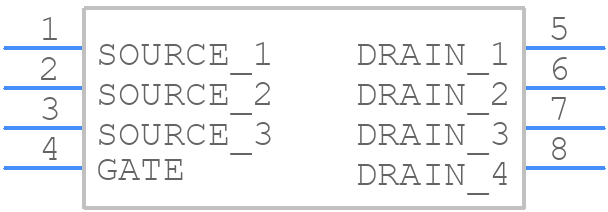

Use the download button to access the ECH8310-TL-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECH83,
or try a keyword search, such as Power Field-Effect Transistors
