ECH8661-TL-H - onsemi

Description: Complementary Dual Power MOSFET 30V

Download ECH8661-TL-H Model

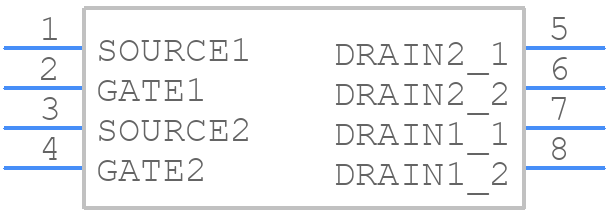

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ECH8661-TL-H - onsemi PCB footprint - Other - Other - ECH8
click to zoom
3D Models
ECH8661-TL-H - onsemi  - 3D model - Other - ECH8
click to zoom

ECH8661-TL-H Details

  • Manufacturer Part Number:

    ECH8661-TL-H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-28FL / ECH8

  • Pin Count:

    8

  • Manufacturer Package Code:

    318BF

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    7 A

  • Drain-source On Resistance-Max:

    0.082 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    72 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.5 W

  • Pulsed Drain Current-Max (IDM):

    40 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
