OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; OVER LOAD
Seated Height-Max:
22.9 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.017 s
Width:
25.4 mm
ECL10US09-P Frequently Asked Questions (FAQs)
XP Power recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat effectively. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the ECL10US09-P is designed to meet the requirements of IEC 60068-2-6 for vibration, which includes 10-2000 Hz, 2G acceleration, and 1 octave/min sweep rate. However, it's recommended to consult with XP Power's application engineers to ensure the converter meets the specific vibration requirements of your application.
The maximum capacitance on the output of the ECL10US09-P is 2200uF. Exceeding this value may affect the stability of the converter. It's recommended to consult with XP Power's application engineers to determine the optimal output capacitance for your specific application.
The ECL10US09-P has a wide input voltage range of 9-36VDC, but it's recommended to consult with XP Power's application engineers to ensure the converter meets the specific input voltage requirements of your application, including any voltage transients or spikes.
The MTBF of the ECL10US09-P is calculated to be approximately 2.5 million hours at 25°C, based on MIL-HDBK-217F. However, this value may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECL10US09-P Overview

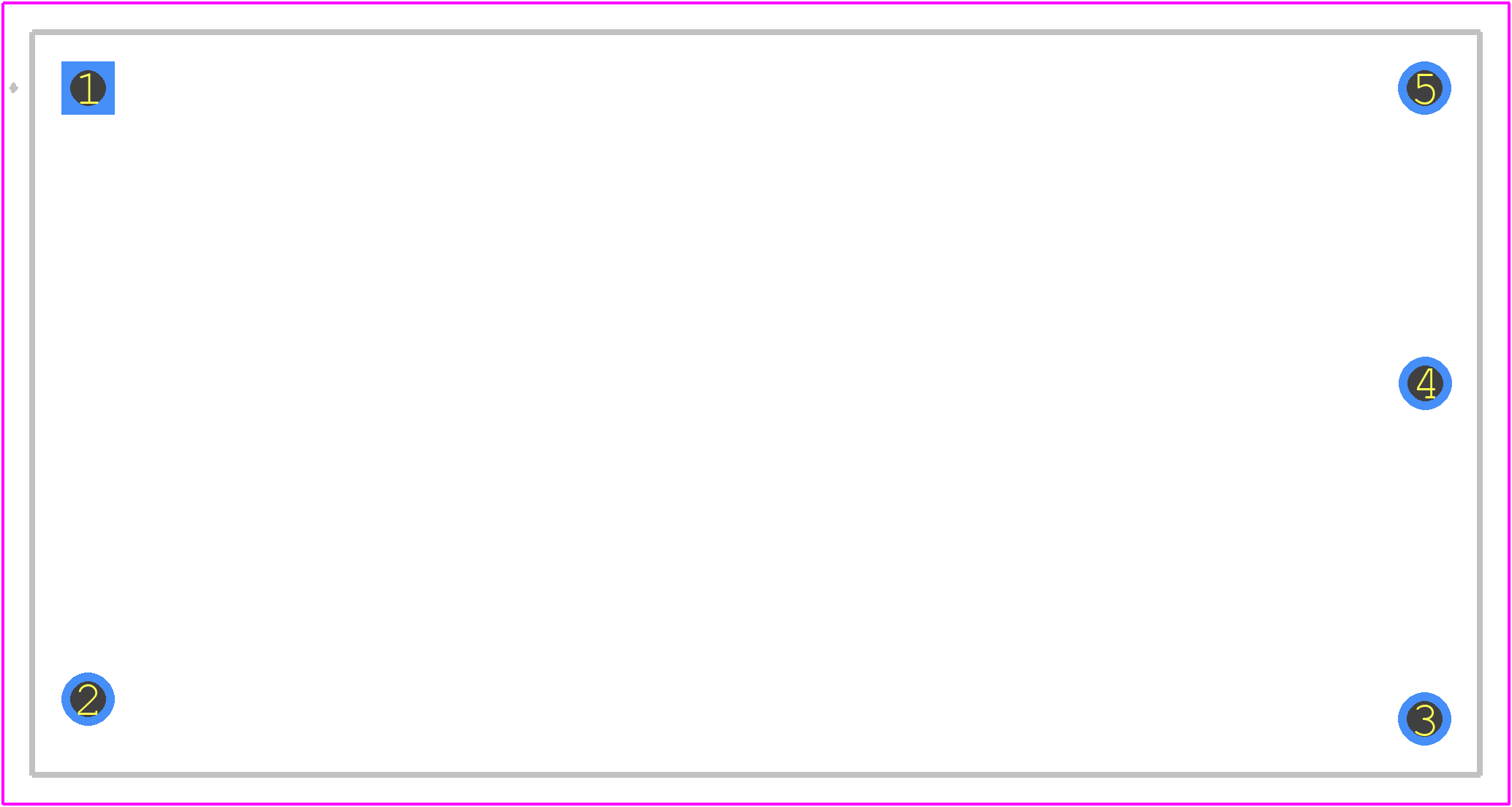

Use the download button to access the ECL10US09-P schematic symbol, PCB footprint, and 3D model.
