The maximum capacitance load for the ECL15US12-E is 0.1uF. Exceeding this value may affect the stability of the output voltage.
The ECL15US12-E is rated for operation up to 80°C ambient temperature. However, derating may be necessary for temperatures above 60°C. Consult the manufacturer's application notes for more information.
The ECL15US12-E is not certified for use in hazardous locations. If you need a power supply for a hazardous location, consider a different model or consult with the manufacturer.
The MTBF for the ECL15US12-E is approximately 2.5 million hours, calculated according to MIL-HDBK-217F. This value is subject to change based on operating conditions and other factors.
Yes, you can parallel multiple ECL15US12-E units to increase the output current. However, ensure that the units are identical and properly connected to avoid any mismatch or instability issues.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECL15US12-E Overview

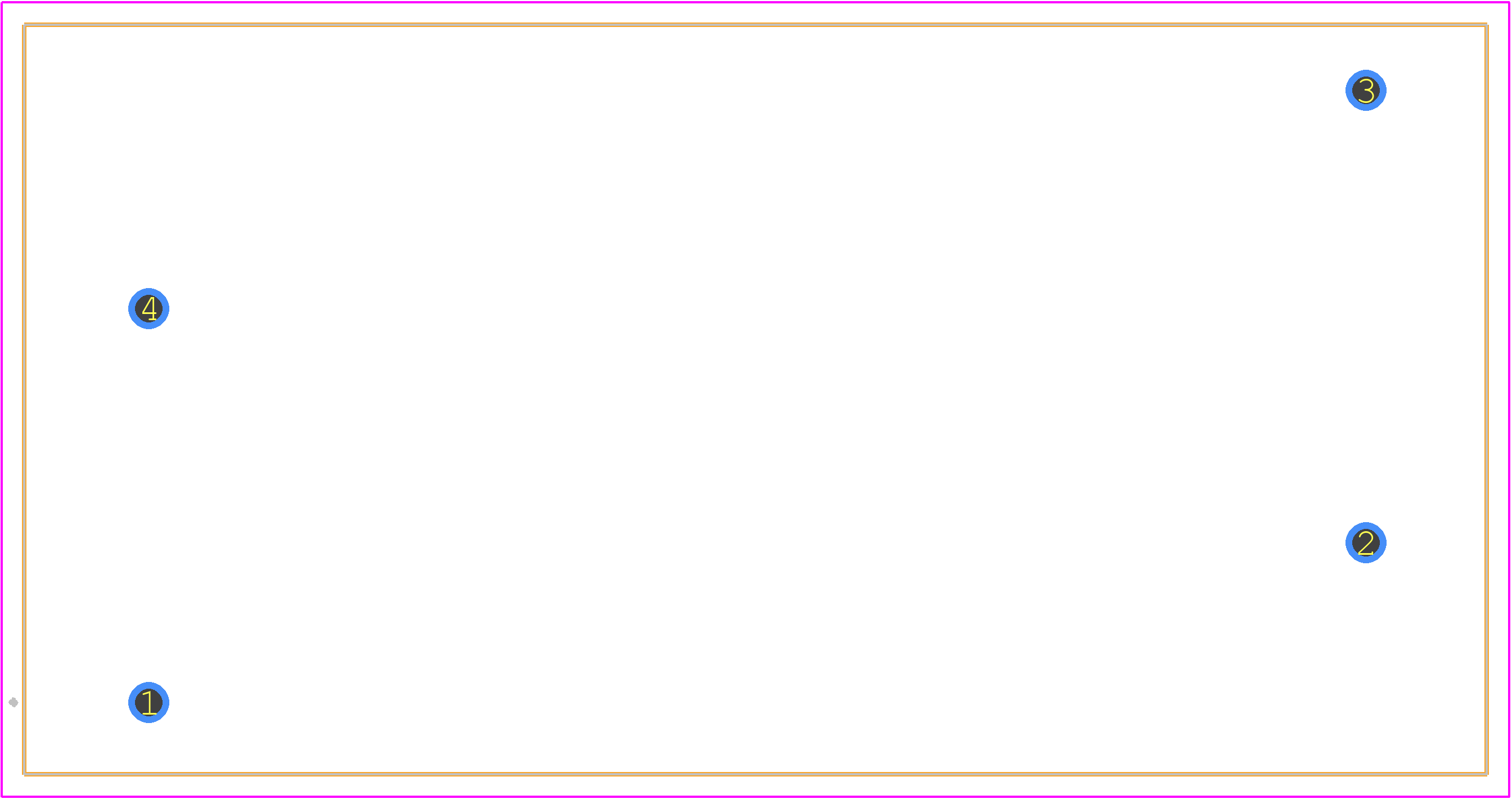

Use the download button to access the ECL15US12-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECL15,
or try a keyword search, such as Power Supply Modules
