OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; OVER LOAD
Ripple Voltage (Main Out):
0.017675 Vrms
Seated Height-Max:
24.9 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
15 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.017 s
Width:
33.5 mm
ECL15UT03-E Frequently Asked Questions (FAQs)
XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the ECL15UT03-E is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in industrial and transportation applications. However, it's essential to ensure proper mounting and screw torque to prevent damage.
To ensure EMC, XP Power recommends following proper PCB layout and design guidelines, using a metal enclosure, and implementing adequate filtering and shielding. Additionally, the module's input and output cables should be kept as short as possible and routed away from noise sources.
The maximum allowable capacitance on the output of the ECL15UT03-E is 47μF. Exceeding this value may affect the module's stability and performance. It's essential to ensure that the output capacitance, including any external capacitors, does not exceed this limit.
Yes, the ECL15UT03-E can be used in redundant or parallel configurations to achieve higher power or redundancy. However, it's crucial to ensure proper synchronization and ORing diode implementation to prevent damage or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECL15UT03-E Overview

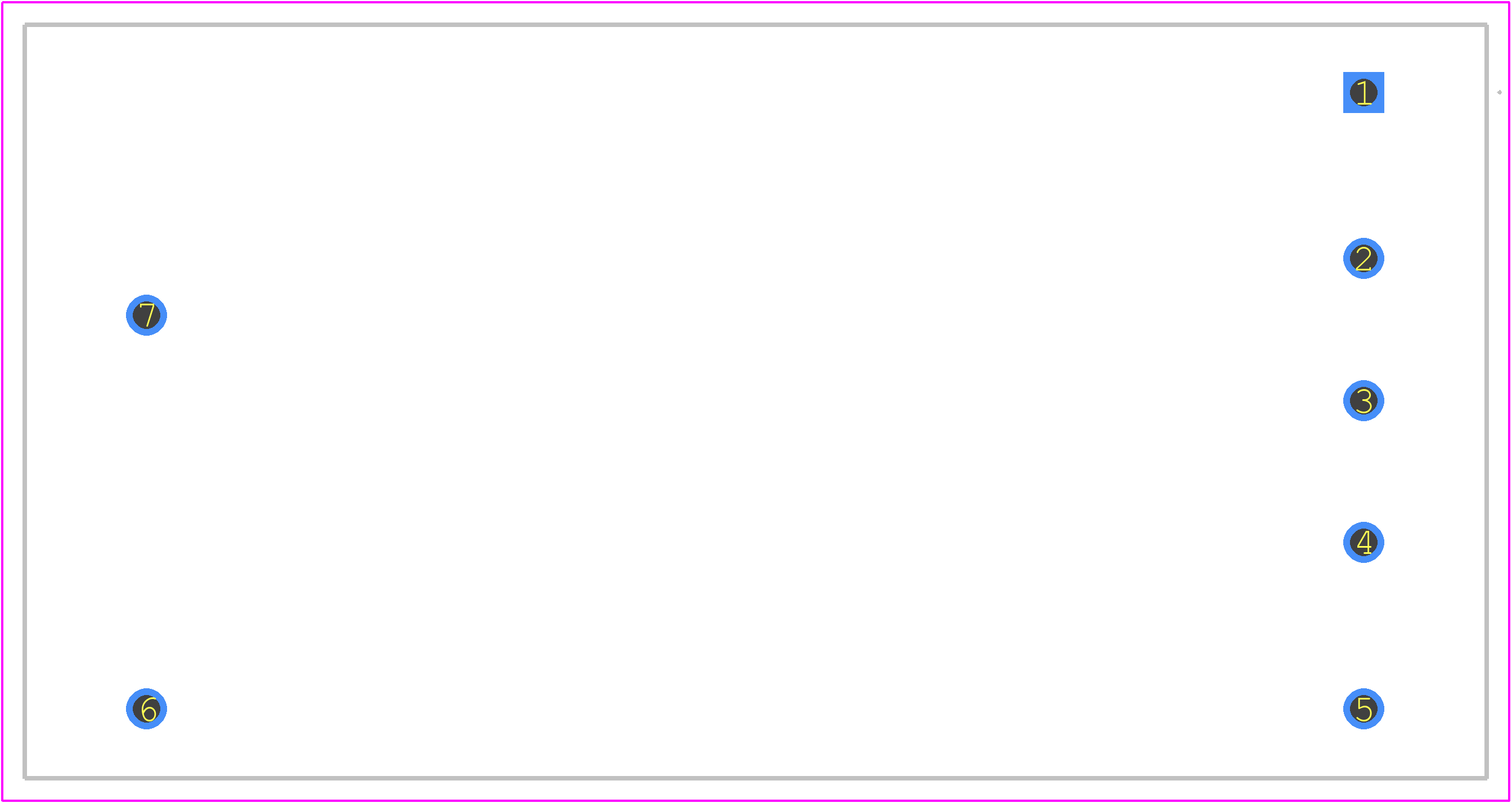

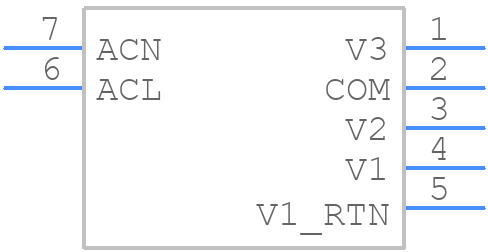

Use the download button to access the ECL15UT03-E schematic symbol, PCB footprint, and 3D model.
