HALOGEN FREE AND ROHS COMPLIANT, JEDEC SOT-23 6L, 6 PIN
ECCN Code:
EAR99
HTS Code:
8504.50.80.00
Manufacturer:
Semtech Corporation
YTEOL:
0
Approvals:
UL; IEC
Capacitance:
30 µF
DC Resistance-Max:
24 Ω
Filter Type:
DATA LINE FILTER
Height:
1.45 mm
JESD-609 Code:
e3
Length:
3.1 mm
Mounting Type:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Material:
PLASTIC
Packing Method:
TR, 7 INCH
Rated Voltage:
5.25 V
Terminal Finish:
Matte Tin (Sn)
Width:
1.75 mm
ECLAMP2122S.TCT Frequently Asked Questions (FAQs)
A good PCB layout for the ECLAMP2122S.TCT involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a common ground point for the input and output.
To choose the right TVS diode, consider the maximum voltage and current requirements of your application, as well as the desired level of protection. The ECLAMP2122S.TCT is suitable for 2-line protection, but you may need to consider other options for different protection requirements.
The ECLAMP2122S.TCT has an operating temperature range of -40°C to 150°C, making it suitable for a wide range of applications, including automotive and industrial systems.
Yes, the ECLAMP2122S.TCT is suitable for ESD protection in USB interfaces, as it meets the IEC 61000-4-2 standard for ESD protection. However, ensure that the device is properly sized for the specific USB application.
To ensure proper soldering, follow the recommended soldering profile and handling procedures outlined in the datasheet. Additionally, use a soldering iron with a temperature range of 250°C to 260°C, and avoid applying excessive force or pressure during the soldering process.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ECLAMP2122S.TCT Overview

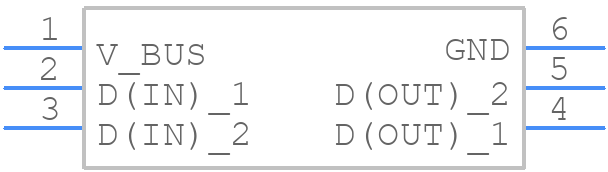

Use the download button to access the ECLAMP2122S.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLAM,
or try a keyword search, such as Data Line Filters
