A good PCB layout for the ECLAMP2357NQTLT involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a common ground point for the device and the protected circuit.
To choose the right TVS diode, consider the maximum voltage and current of your application, as well as the desired level of protection. The ECLAMP2357NQTLT is a 2.5V TVS diode, so it's suitable for applications with a maximum voltage of 2.5V. You should also consider the power rating, response time, and clamping voltage of the TVS diode.
A TVS diode is a type of diode that is specifically designed to protect against voltage transients and electrostatic discharge (ESD) events. A Zener diode, on the other hand, is a type of diode that is designed to regulate voltage. While both types of diodes can be used for voltage regulation, a TVS diode is better suited for protecting against high-voltage transients and ESD events.
To ensure the ECLAMP2357NQTLT is properly soldered to the PCB, follow the recommended soldering profile and use a solder with a melting point below 260°C. Apply a small amount of solder paste to the PCB pads, place the device, and reflow the solder using a hot air gun or reflow oven. Inspect the solder joints for any defects or cold solder joints.
The maximum operating temperature of the ECLAMP2357NQTLT is 125°C. It's essential to ensure that the device operates within the recommended temperature range to maintain its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLAMP2357NQTLT Overview

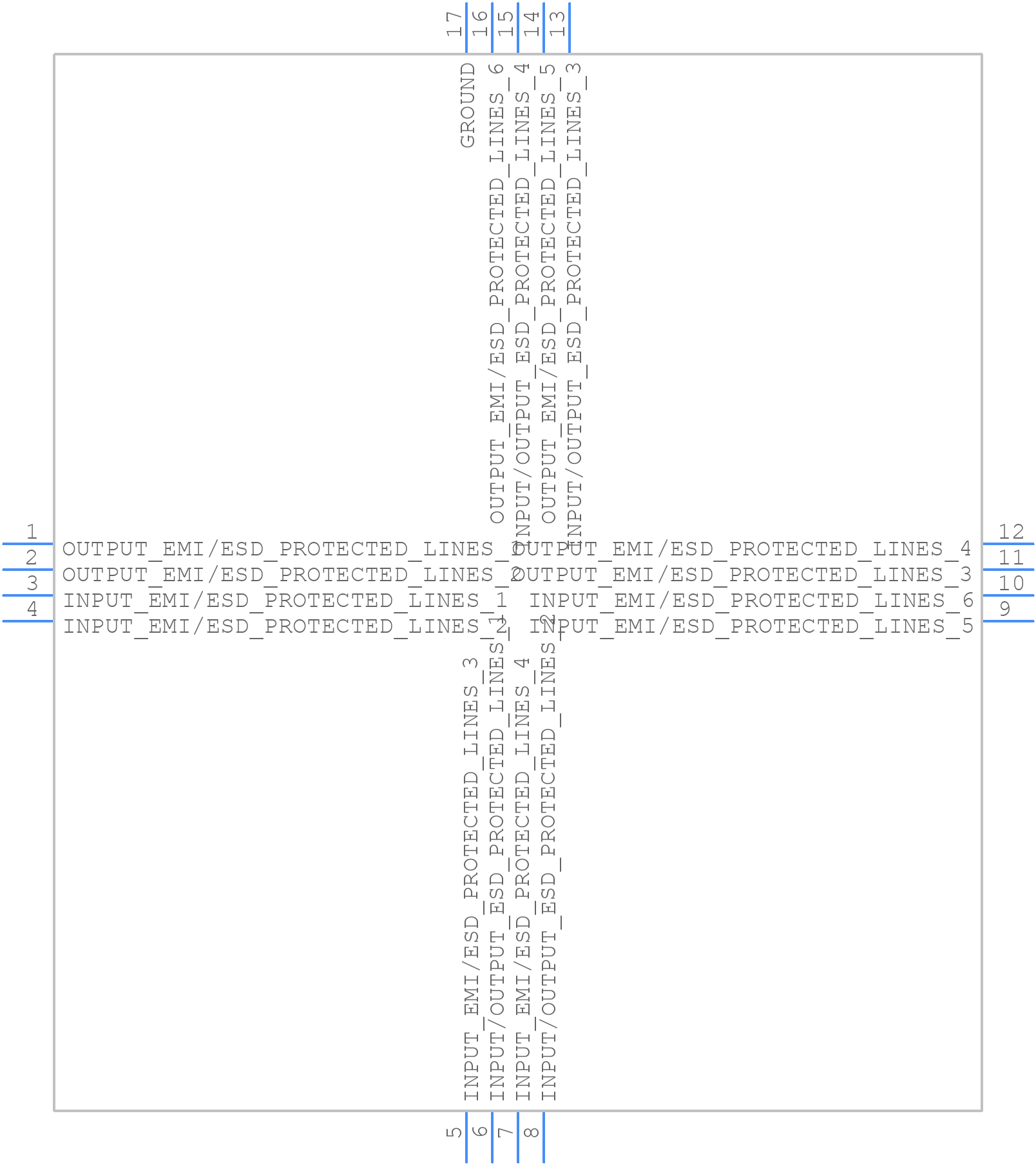

Use the download button to access the ECLAMP2357NQTLT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLAM,
or try a keyword search, such as Data Line Filters
Suggested Parts
If you searched for ECLAMP2357NQTLT, you might also be interested in these parts:
