A good PCB layout for the ECLAMP2455K.TCT involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a common ground point for the device and the protected circuit.
To choose the right TVS diode, consider the maximum voltage and current requirements of your application, as well as the desired level of protection. The ECLAMP2455K.TCT is suitable for 5V systems, but you may need a different device for other voltage levels. Consult the datasheet and application notes for guidance.
The ECLAMP2455K.TCT is rated for a maximum surge current of 24A (8/20μs waveform) according to the IEC 61000-4-5 standard. However, it's essential to consider the specific requirements of your application and ensure the device can handle the expected surge currents.
Yes, the ECLAMP2455K.TCT can be used for ESD protection only. In this case, you would connect the device between the signal line and ground, without the need for a surge protection circuit. However, keep in mind that the device is designed to provide both ESD and surge protection, so you may want to consider using a dedicated ESD protection device for optimal performance.
To ensure proper soldering and mounting, follow the recommended soldering profile and handling procedures outlined in the datasheet. Use a soldering iron with a temperature range of 250°C to 260°C, and avoid applying excessive force or bending the leads during handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLAMP2455K.TCT Overview

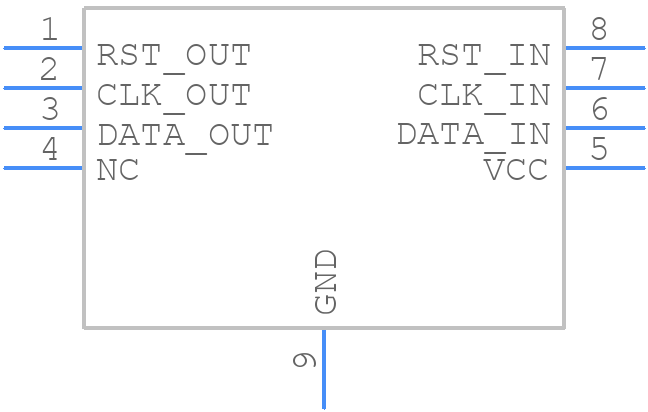

Use the download button to access the ECLAMP2455K.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLAM,
or try a keyword search, such as Data Line Filters
