A good PCB layout for ECLAMP2485T.TCT involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a common mode choke or a ferrite bead in series with the input to improve common mode noise rejection.
To choose the right TVS diode, consider the maximum voltage and current of your circuit, as well as the type of transient protection required (e.g., IEC 61000-4-2, IEC 61000-4-4, or IEC 61000-4-5). The ECLAMP2485T.TCT is a 24V TVS diode, so it's suitable for circuits with a maximum voltage of 24V. You should also consider the clamping voltage, peak pulse current, and response time of the TVS diode.
Yes, the ECLAMP2485T.TCT can be used for both power and signal lines. However, it's essential to consider the specific requirements of each line, such as the voltage, current, and frequency. For signal lines, you may need to consider the signal integrity and the impact of the TVS diode on the signal waveform.
To ensure proper soldering, follow the recommended soldering profile and use a solder with a melting point compatible with the device's package. The ECLAMP2485T.TCT is a SOT23 package, so it's essential to use a soldering iron with a fine tip and to avoid overheating the device. Additionally, ensure the PCB is clean and free of oxidation before soldering.
The maximum operating temperature of ECLAMP2485T.TCT is 150°C, with a storage temperature range of -40°C to 150°C. It's essential to consider the operating temperature of your circuit and ensure the TVS diode is within its specified temperature range to maintain its performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLAMP2485T.TCT Overview

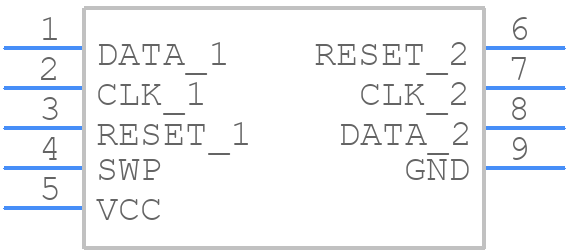

Use the download button to access the ECLAMP2485T.TCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLAM,
or try a keyword search, such as Other Consumer ICs
