OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.053 Vrms
Screening Level:
IEC/UL 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
75 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
30.5 mm
ECLB75W-24D12 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the input capacitors close to the pins. For thermal management, ensure good airflow, use a heat sink if necessary, and keep the ambient temperature within the specified range.
To ensure EMC, use a metal enclosure, add EMI filters at the input and output, and follow proper PCB layout and grounding techniques. Additionally, consider using shielding materials and keeping the converter away from sensitive components.
The derating curve is typically provided by the manufacturer upon request. It shows the reduction in output power as the ambient temperature increases. For the ECLB75W-24D12, the derating curve is usually around 2-3% per degree Celsius above 50°C, but this may vary depending on the specific application and environment.
Yes, the ECLB75W-24D12 can be used in a redundant or parallel configuration, but it requires careful consideration of the system design, including synchronization, current sharing, and fault tolerance. Consult with the manufacturer or a qualified engineer for specific guidance.
The ECLB75W-24D12 is commonly used in industrial control systems, telecommunications, data centers, and medical devices, where high reliability, efficiency, and compact size are essential.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLB75W-24D12 Overview

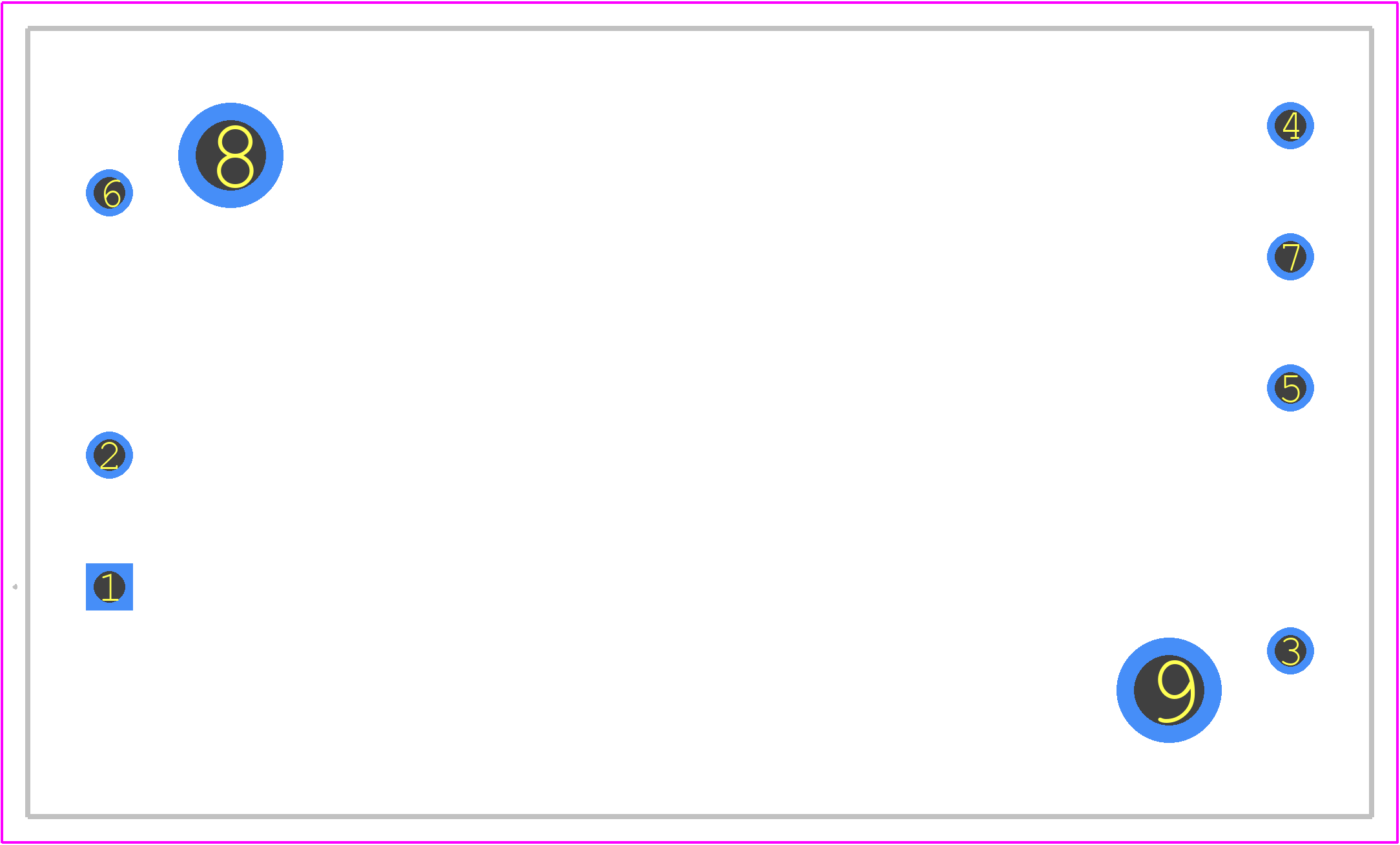

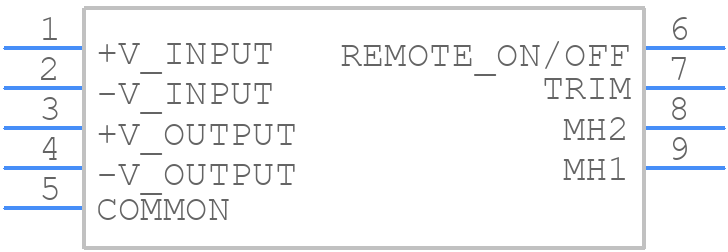

Use the download button to access the ECLB75W-24D12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLB7,
or try a keyword search, such as Power Supply Modules
