OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.053 Vrms
Screening Level:
IEC/UL 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
75 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
30.5 mm
ECLB75W-24D15 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing the input capacitors close to the IC. For thermal management, ensure good airflow, use a heat sink if necessary, and keep the ambient temperature within the specified range.
To ensure EMC, follow proper PCB layout and grounding practices, use shielding if necessary, and add EMI filters at the input and output. Additionally, ensure that the converter is placed in a metal enclosure and that all cables are properly shielded and routed.
The derating curve is typically provided by the manufacturer upon request. It shows the reduction in output power as a function of temperature. For the ECLB75W-24D15, the derating curve is typically around 2-3% per degree Celsius above 50°C, which means the output power will decrease by 2-3% for every degree above 50°C.
The ECLB75W-24D15 is designed to meet standard vibration and shock requirements, but for extreme environments, additional testing and validation may be required. It's recommended to consult with the manufacturer and perform environmental testing to ensure the converter meets the specific requirements.
The MTBF rating for the ECLB75W-24D15 is typically around 1-2 million hours, depending on the operating conditions and environment. This rating is based on the manufacturer's reliability testing and calculations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLB75W-24D15 Overview

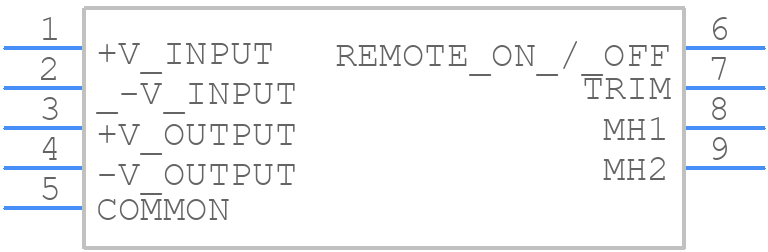

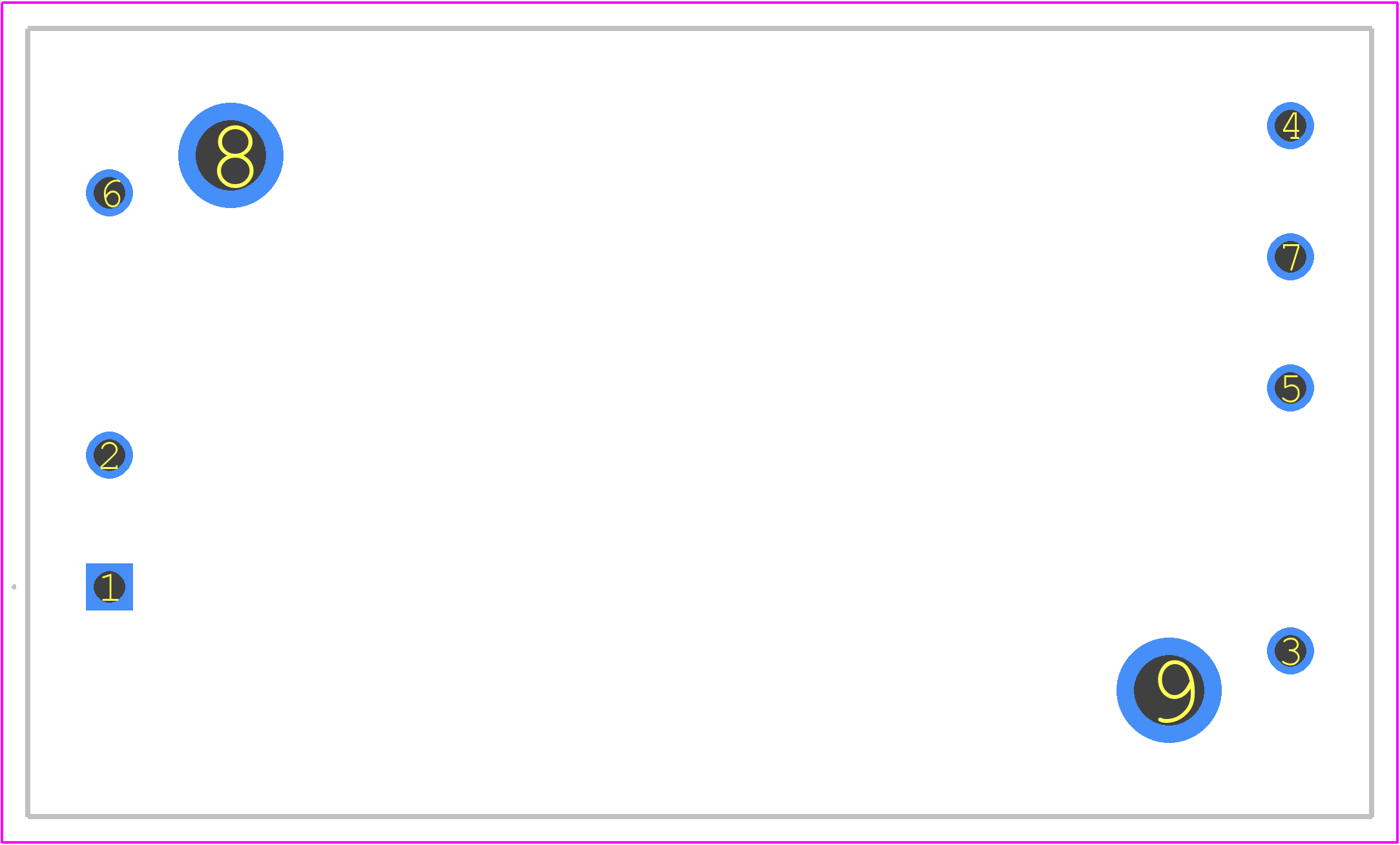

Use the download button to access the ECLB75W-24D15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLB7,
or try a keyword search, such as Power Supply Modules
