OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.035 Vrms
Screening Level:
IEC/UL 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
75 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
30.5 mm
ECLB75W-24S05 Frequently Asked Questions (FAQs)
The recommended PCB layout and thermal management for optimal performance can be found in the Cincon Electronics Corporation's application note or design guide for the ECLB75W-24S05. It typically includes guidelines for component placement, thermal vias, and heat sink design.
The ECLB75W-24S05 has built-in input voltage transient protection, which can handle voltage spikes up to 100V for 100ms. However, it's recommended to add external input voltage transient protection devices, such as TVS diodes, for more robust protection.
The maximum allowable capacitance on the output of the ECLB75W-24S05 is typically limited by the stability of the converter. A general rule of thumb is to keep the output capacitance below 10uF to ensure stability. However, it's recommended to consult with Cincon Electronics Corporation's application engineers for specific guidance.
Yes, the ECLB75W-24S05 can be used in a redundant or parallel configuration, but it requires careful design and consideration of the system's overall architecture, including synchronization, current sharing, and fault detection. It's recommended to consult with Cincon Electronics Corporation's application engineers for specific guidance.
The MTBF of the ECLB75W-24S05 is typically provided in the datasheet or can be requested from Cincon Electronics Corporation. It's usually calculated based on the Telcordia SR-332 standard and is expressed in hours.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLB75W-24S05 Overview

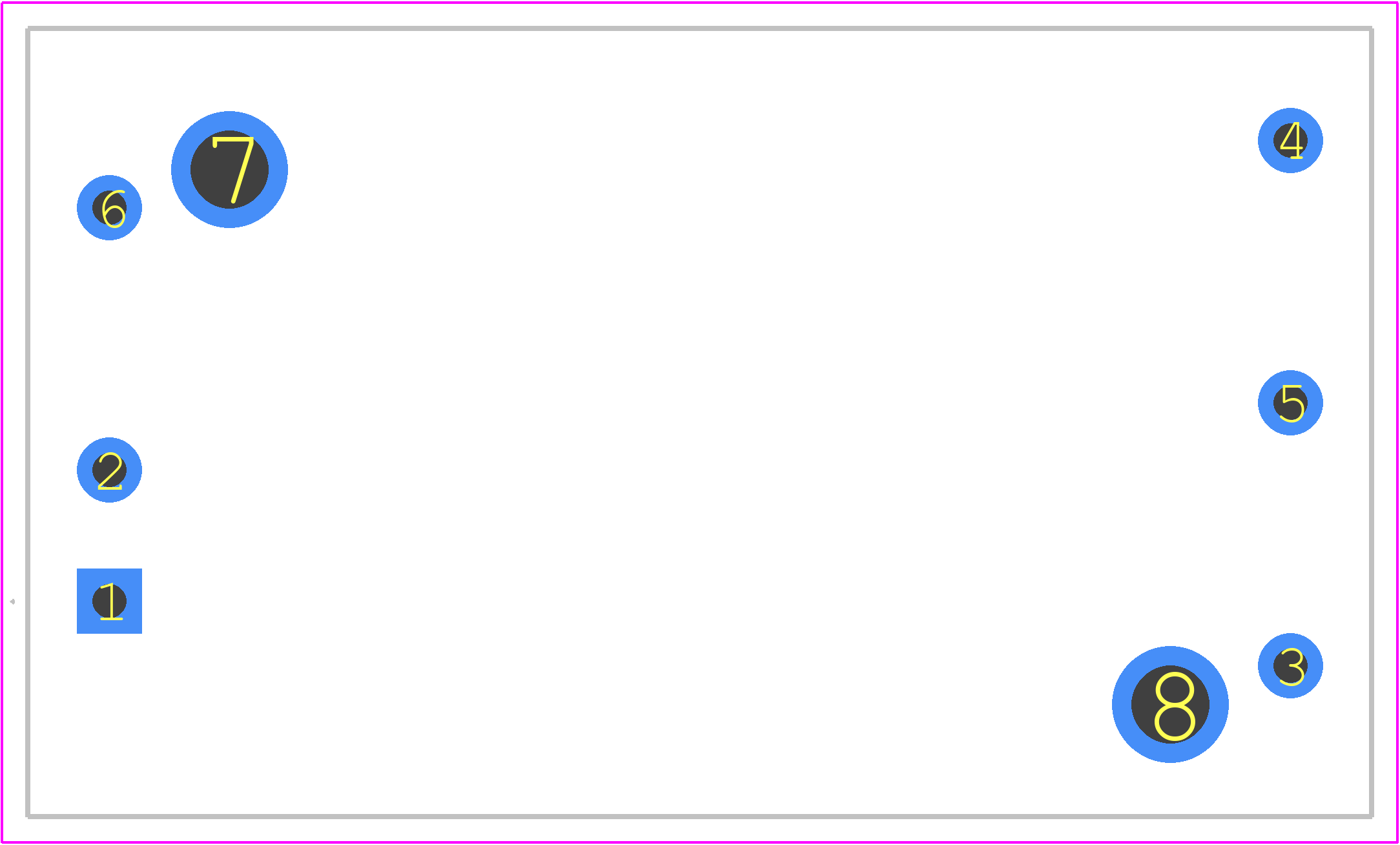

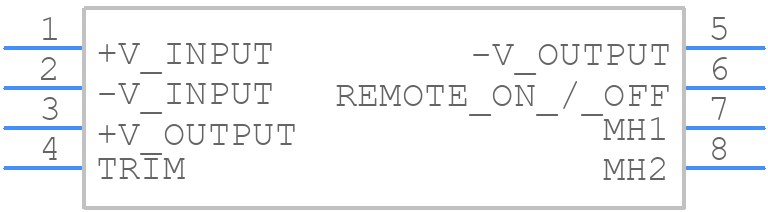

Use the download button to access the ECLB75W-24S05 schematic symbol, PCB footprint, and 3D model.
