OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL
Ripple Voltage (Main Out):
0.053 Vrms
Screening Level:
IEC/UL 62368-1
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Total Power Output-Max:
75 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
30.5 mm
ECLB75W-24S12 Frequently Asked Questions (FAQs)
The recommended PCB layout should ensure good thermal conductivity and minimal thermal resistance. A multi-layer PCB with thermal vias and a heat sink is recommended. The device should be placed on a solid copper plane to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended derating curves, ensure good airflow, and use a heat sink with a thermal interface material. Additionally, consider using a thermistor or thermal sensor to monitor the temperature and implement over-temperature protection.
The recommended input capacitors are low-ESR ceramic capacitors with a voltage rating of at least 25V and a capacitance value of 10-22uF. The recommended output capacitors are also low-ESR ceramic capacitors with a voltage rating of at least 12V and a capacitance value of 10-22uF.
To troubleshoot common issues, first, verify the input voltage and ensure it is within the recommended range. Check the output voltage and current to identify any anomalies. Use an oscilloscope to monitor the voltage and current waveforms. Check the thermal management and ensure good airflow. Consult the datasheet and application notes for specific troubleshooting guidelines.
Yes, to minimize EMI/EMC issues, ensure proper PCB layout, use a shielded enclosure, and add EMI filters or common-mode chokes as needed. Follow the recommended layout and grounding guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECLB75W-24S12 Overview

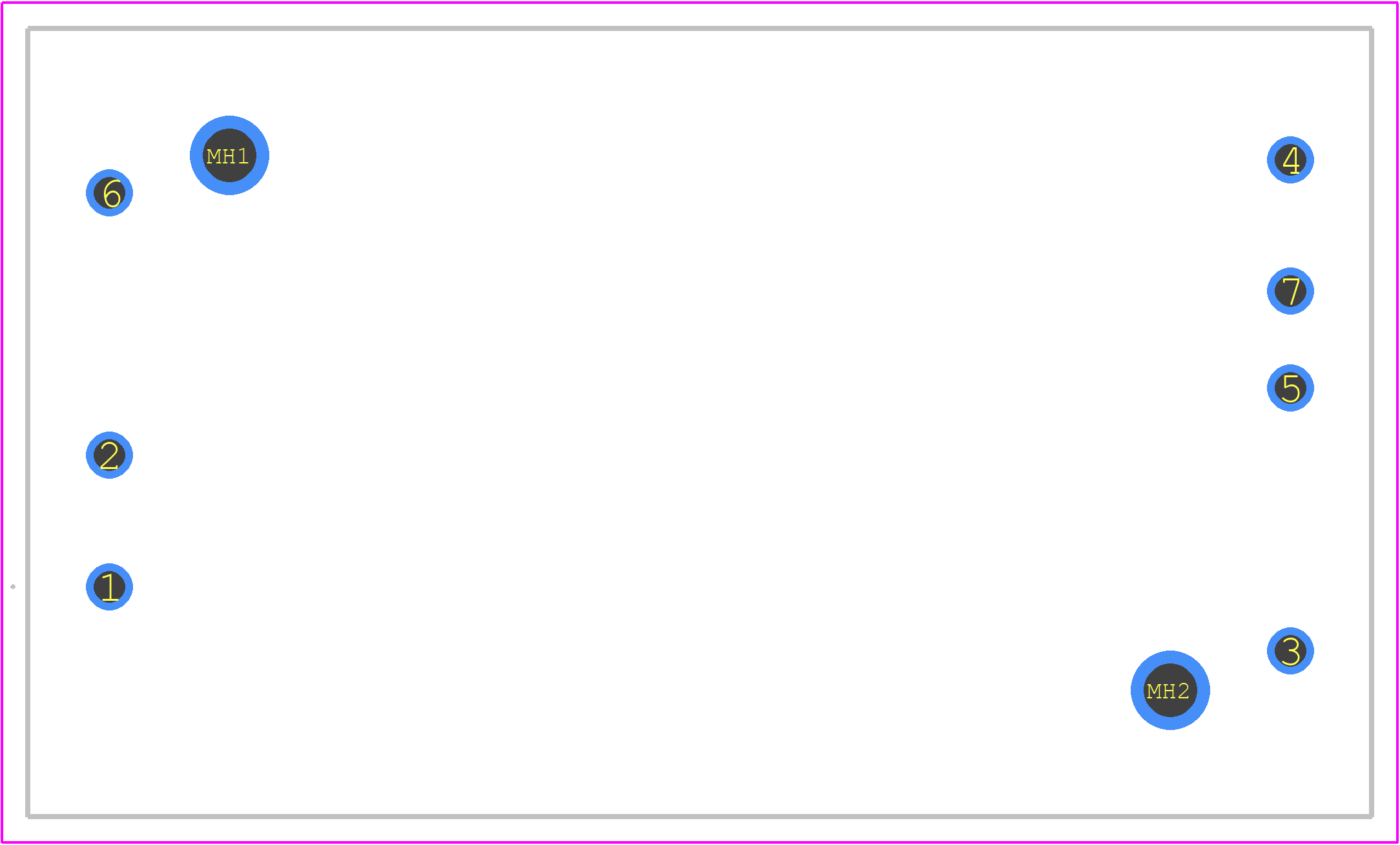

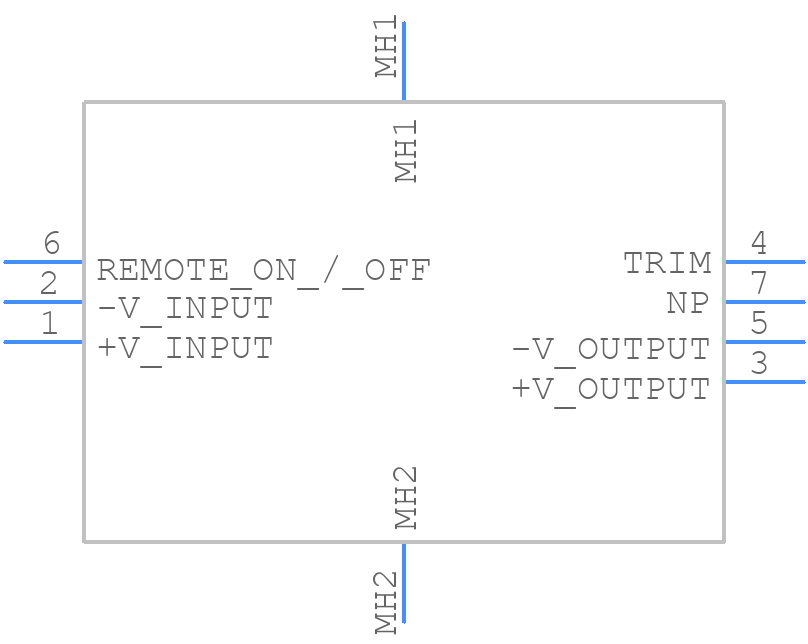

Use the download button to access the ECLB75W-24S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECLB7,
or try a keyword search, such as Power Supply Modules
