Panasonic recommends a PCB layout with a solid ground plane, short and direct connections to the capacitor, and a minimum of vias and thermal reliefs to ensure low inductance and thermal resistance.
To ensure reliability, follow the recommended derating guidelines, use a suitable thermal interface material, and ensure good airflow around the component. Additionally, consider using a thermally conductive pad or heat sink to dissipate heat.
According to Panasonic's guidelines, the maximum allowable voltage derating for the ECQE2335KF is 80% of the rated voltage at high temperatures (above 85°C). This ensures reliable operation and prevents premature failure.
While the ECQE2335KF is designed for general-purpose use, it may not be suitable for high-frequency applications (>100 kHz) due to its internal construction and equivalent series resistance (ESR). For high-frequency applications, consider using a capacitor specifically designed for high-frequency use.
To prevent damage, store the ECQE2335KF in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Avoid bending, flexing, or applying excessive pressure to the component during transportation and handling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECQE2335KF Overview

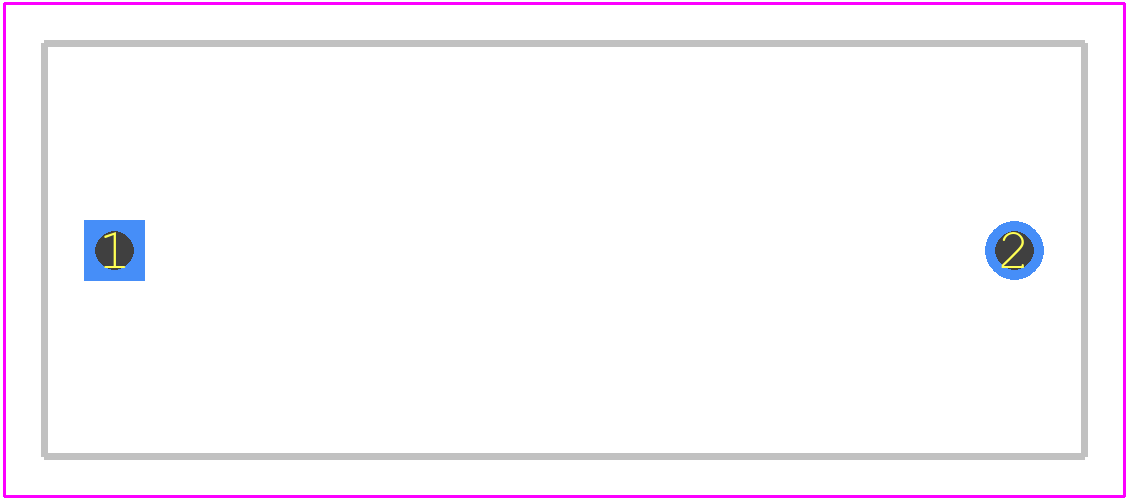

Use the download button to access the ECQE2335KF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECQE2,
or try a keyword search, such as Film Capacitors
