ECQE6473JF - Panasonic

Description: Metallized Polyester Film Capacitor 0.047µF ±5%, 630V

Download ECQE6473JF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

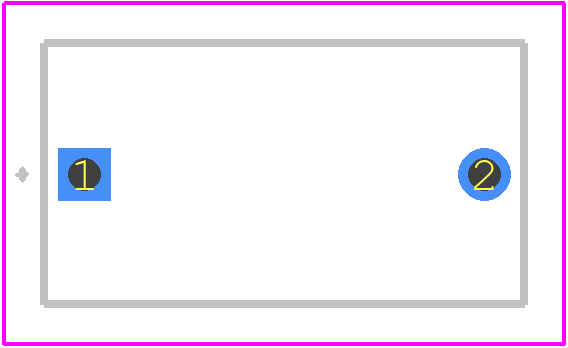

ECQE6473JF - Panasonic PCB footprint - Other - Other - ECQE6473JF
click to zoom
3D Models
ECQE6473JF - Panasonic  - 3D model - Other - ECQE6473JF
click to zoom

ECQE6473JF Details

  • Manufacturer Part Number:

    ECQE6473JF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.87

  • Additional Feature:

    FLAME PROOF

  • Capacitance:

    47 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYESTER

  • Height:

    13.5 mm

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    5%

  • Rated (DC) Voltage (URdc):

    630 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

  • Width:

    6.5 mm
