ECS-110.5-18-5PLX-AGN-TR - ECS

Description: 11.0592 MHz ±25ppm Crystal 18pF 50 Ohms HC-49/US -40°C ~ 85°C (11.40mm x 4.80mm),0.126" (3.20mm)

Download ECS-110.5-18-5PLX-AGN-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECS-110.5-18-5PLX-AGN-TR - ECS - PCB symbol
click to zoom
PCB Footprints

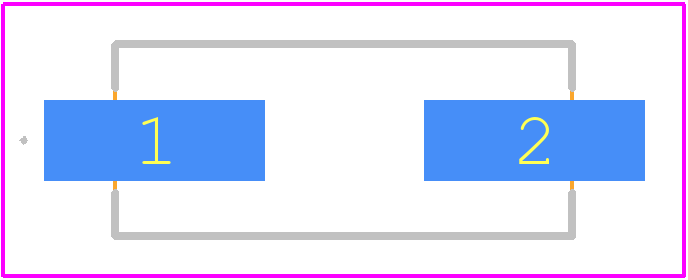

ECS-110.5-18-5PLX-AGN-TR - ECS PCB footprint - Other - Other - ECS-110.5-18-5PLX-AGN-TR-1
click to zoom
3D Models
ECS-110.5-18-5PLX-AGN-TR - ECS - 3D model - Other - ECS-110.5-18-5PLX-AGN-TR-1
click to zoom

ECS-110.5-18-5PLX-AGN-TR Details

  • Manufacturer Part Number:

    ECS-110.5-18-5PLX-AGN-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 2 PIN

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    6.65

  • Aging:

    5 PPM/FIRST YEAR

  • Crystal/Resonator Type:

    PARALLEL - FUNDAMENTAL

  • Drive Level:

    500 µW

  • Frequency Stability:

    0.003%

  • Frequency Tolerance (MHz):

    25

  • Load Capacitance:

    18 pF

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Frequency-Nom:

    11.05 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 12 INCH

  • Physical Dimension:

    11.4mm x 4.8mm x 3.2mm

  • Series Resistance:

    50 Ω

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin/Copper (Sn/Cu) - with Nickel (Ni) barrie

ECS-110.5-18-5PLX-AGN-TR Frequently Asked Questions (FAQs)

  • The operating temperature range of the ECS-110.5-18-5PLX-AGN-TR is -40°C to 85°C.
  • Yes, the ECS-110.5-18-5PLX-AGN-TR is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical lead time for delivery of the ECS-110.5-18-5PLX-AGN-TR is 4-6 weeks, but this may vary depending on the quantity and availability.
  • Yes, the ECS-110.5-18-5PLX-AGN-TR is designed to withstand high-vibration environments, making it suitable for use in industrial and automotive applications.
  • Yes, the ECS-110.5-18-5PLX-AGN-TR meets the requirements of various automotive standards, including AEC-Q200 and ISO/TS 16949.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECS-110.5-18-5PLX-AGN-TR Overview

Use the download button to access the ECS-110.5-18-5PLX-AGN-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-1, or try a keyword search, such as Quartz Crystals
